CLAAS LINER Four-Rotor Rake
Forage quality is our number one priority and we know that your time is limited, so we take care to protect your resources. We make sure that your grass sward remains intact, your field is quickly cleared, and your livestock are healthy and productive. How do we manage that? Through intelligent engineering and perfectly coordinated machine components, customised to suit your needs.
Features
Follows every move
JET effect
Adapts to the ground
Turns night into day
The LINER is your partner of choice if you want top forage quality. The 3D rotor suspension has a double swivel joint to ensure ample rotational movement. This enables the rotors to respond quickly and flexibly to uneven ground. The patented spring acts as a shock absorber to ensure smooth movements. The interaction of these two components means that you can count on good ground-contour following even at high working speeds.
During lifting, the front section of the rotor is raised first and during lowering, the rear chassis wheels touch down before the front wheels. This prevents the tines from digging into the soil and keeps the harvested crop clean.
The wheels of the rotor chassis are positioned as close as possible to the tine path. As a result, the distance between the tine tips and the ground remains constant to protect your sward. The effect is amplified by the asymmetric configuration of the chassis which extends the wheel base.
All LINER BUSINESS PRO four-rotor swathers can be optionally fitted with six LED work lights. They are carefully positioned to illuminate all four rotor work areas along with the swath and the surrounding area to give the operator the clearest of views.

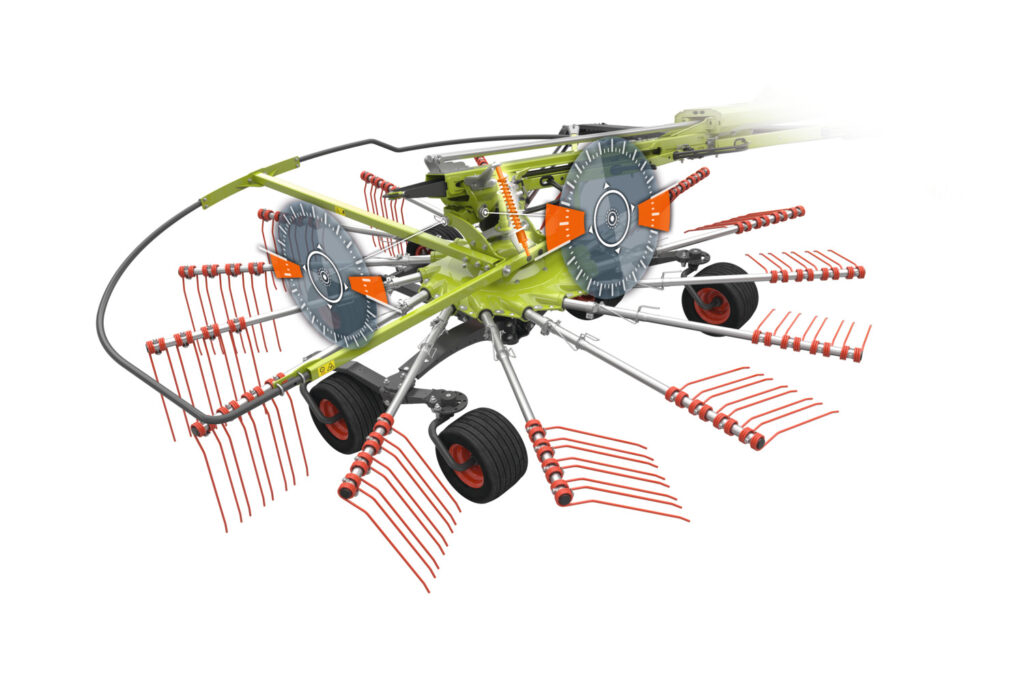

Follows every move
The LINER is your partner of choice if you want top forage quality. The 3D rotor suspension has a double swivel joint to ensure ample rotational movement. This enables the rotors to respond quickly and flexibly to uneven ground. The patented spring acts as a shock absorber to ensure smooth movements. The interaction of these two components means that you can count on good ground-contour following even at high working speeds.
JET effect
During lifting, the front section of the rotor is raised first and during lowering, the rear chassis wheels touch down before the front wheels. This prevents the tines from digging into the soil and keeps the harvested crop clean.

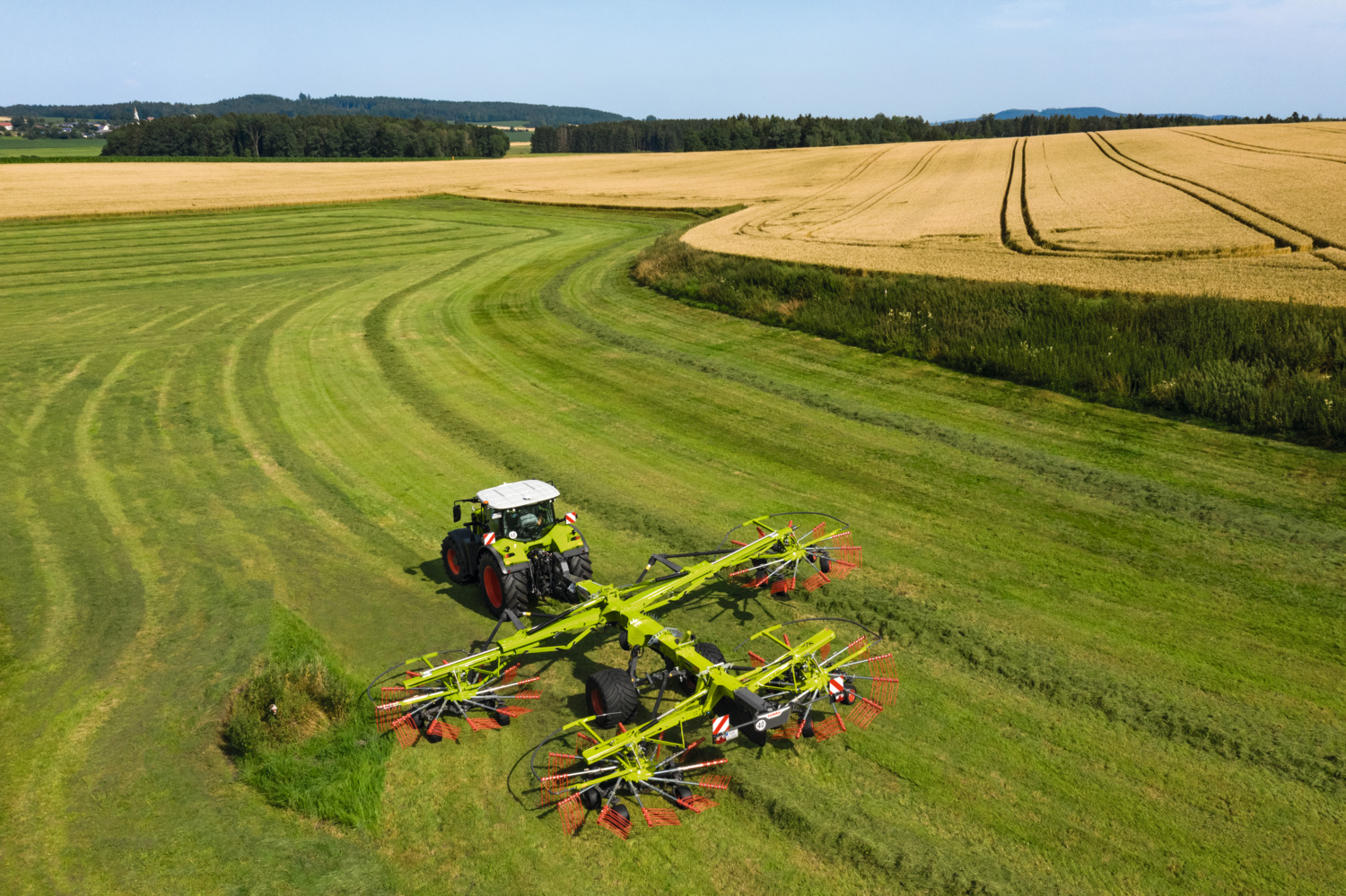

Adapts to the ground
The wheels of the rotor chassis are positioned as close as possible to the tine path. As a result, the distance between the tine tips and the ground remains constant to protect your sward. The effect is amplified by the asymmetric configuration of the chassis which extends the wheel base.

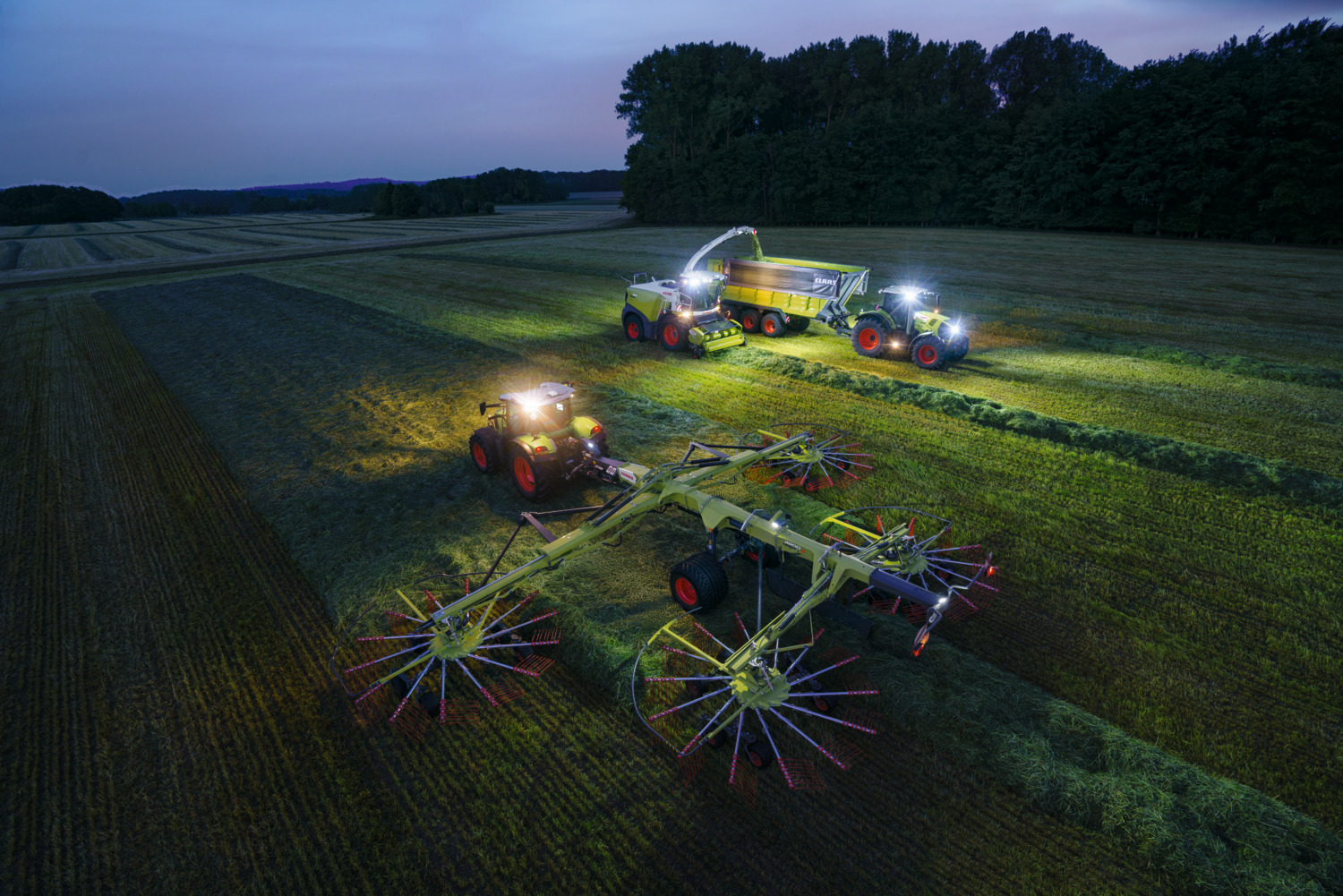

Turns night into day
All LINER BUSINESS PRO four-rotor swathers can be optionally fitted with six LED work lights. They are carefully positioned to illuminate all four rotor work areas along with the swath and the surrounding area to give the operator the clearest of views.
Specifications
4900 BUSINESS PRO |
4800 BUSINESS |
4800 BUSINESS PRO |
4700 BUSINESS |
4700 BUSINESS PRO |
|
|---|---|---|---|---|---|
| Working width (m) | 10.10-15.00 | 9.30-13.60 | 9.30-13.60 | 9.30-12.70 | 9.30-12.70 |
| Swathing rotor | 4 | 4 | 4 | 4 | 4 |
| Swathing rotor diameter (mm) | 3,800 | 3,500 | 3,500 | 3,300 | 3,300 |
| Tine bars per swathing rotor | 14 | 12 | 12 | 12 | 12 |
| PROFIX tine arm attachment system | Yes | Yes | Yes | Yes | Yes |
| Rotor height adjustment | Electro-hydraulic | Manual | Electro-hydraulic | Manual | Electro-hydraulic |
