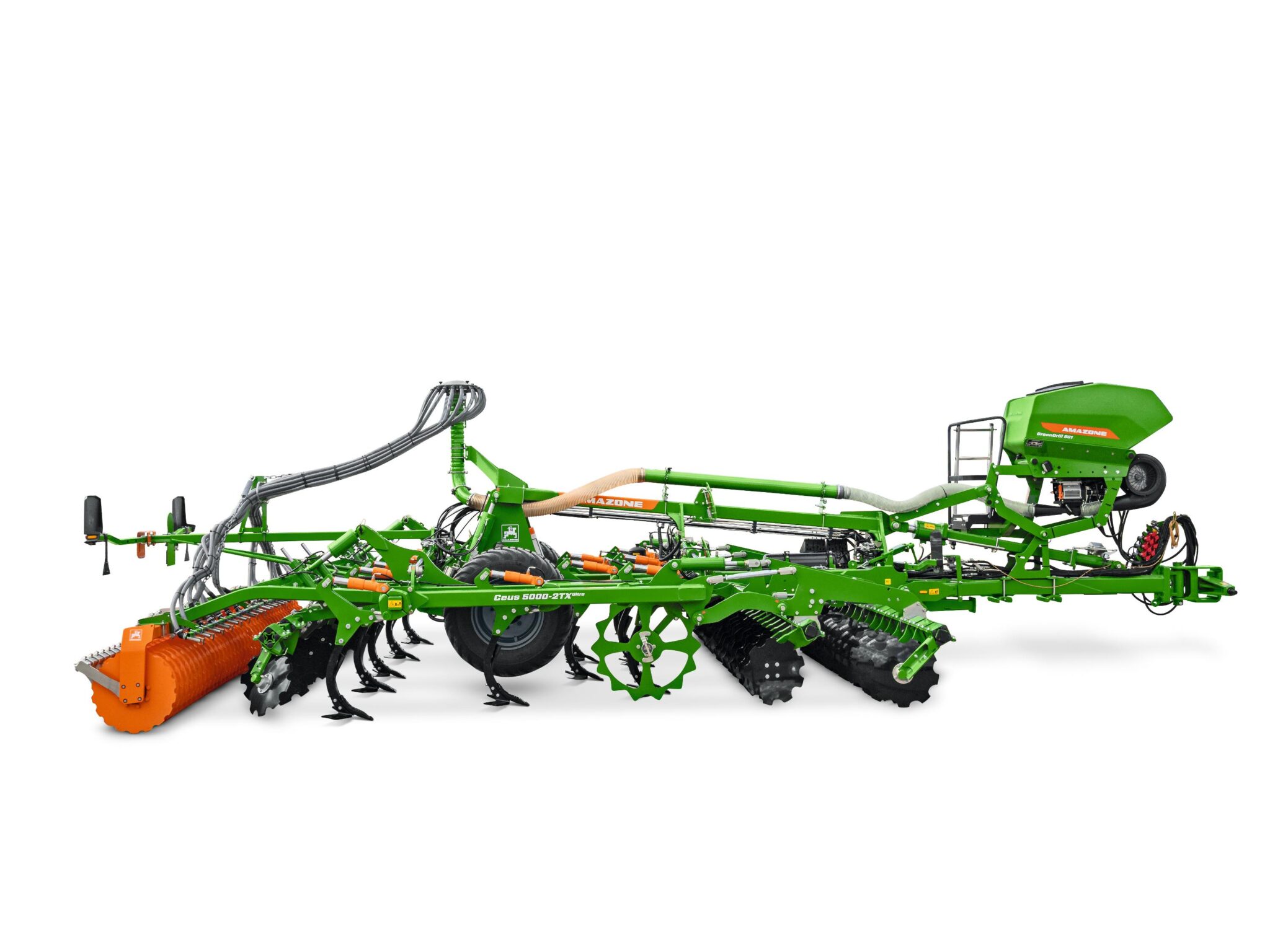

AMAZONE Ceus Combination Cultivator
The Ceus trailed disc and tine combination cultivator, in working widths from 4-7 m, is ideal for the deep loosening of soils together with the simultaneous incorporation of a large amount of organic matter at the shallowest possible depth. The combination of a disc element followed by tines enables the Ceus to offer the advantages of both disc harrows and cultivators in a single compact machine. The Ceus is recommended for stubble cultivation, but can also be used for primary soil tillage, deep loosening and seedbed preparation.
Features
Shallow or deep
One pass, multiple processes
Maintenance free disc bearings
CEUS combines the operational action of a compact disc harrow for shallow soil tillage with a tine section for deep loosening. CEUS combines the operational action of a compact disc harrow for shallow soil tillage with a tine section for deep loosening.
With the new trailed disc harrow cultivator combination, several operational processes can be combined into one pass. So, the front disc section, with its serrated 510 mm discs, allows shallow operation at working depths of 5 to 14 cm. This is then followed by the tine section, with its C-Mix Super tines, which can loosen down to a maximum depth of 35 cm.
Disc element with maintenance-free disc bearings, stone safety release via the elastic sprung rubber buffer blocks and individual disc suspension.
Shallow or deep
CEUS combines the operational action of a compact disc harrow for shallow soil tillage with a tine section for deep loosening. CEUS combines the operational action of a compact disc harrow for shallow soil tillage with a tine section for deep loosening.

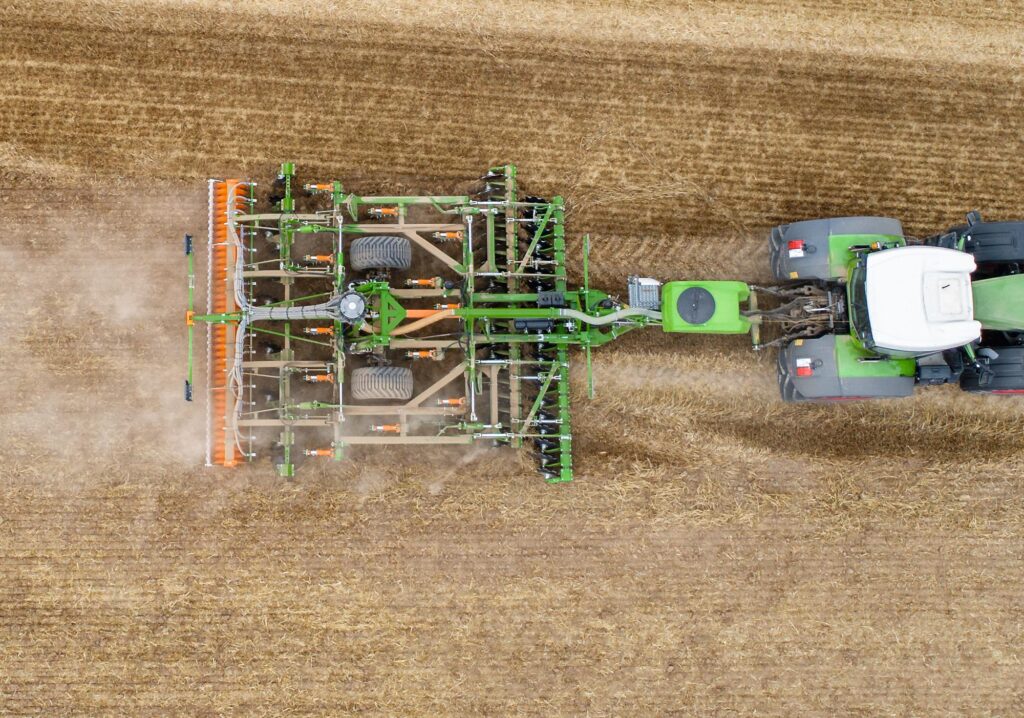

One pass, multiple processes
With the new trailed disc harrow cultivator combination, several operational processes can be combined into one pass. So, the front disc section, with its serrated 510 mm discs, allows shallow operation at working depths of 5 to 14 cm. This is then followed by the tine section, with its C-Mix Super tines, which can loosen down to a maximum depth of 35 cm.
Maintenance free disc bearings
Disc element with maintenance-free disc bearings, stone safety release via the elastic sprung rubber buffer blocks and individual disc suspension.
Additional options
Cage roller
Wedge ring roller
Matrix roller
Disc roller
The SW cage roller is a reliable, inexpensive entry-level roller with a particularly low weight and with good crumbling and an open surface structure.
- Reconsolidation with depth control
- Extremely lightweight entry-level roller, especially suitable for smaller tractors
The KW wedge ring roller benefits from a wide range of applications. Its design ensures reconsolidation in strips in almost all soils under any conditions. The sticking of any dirt, capping or blockages is not an issue!
- Universal for all soils and conditions
- Strip-wise reconsolidation
The KWM wedge ring roller, with its Matrix tyre profile offers a particularly good self-driving effect. The roller produces more fine soil for the seedbed due to the Matrix profile.
- Strip-wise reconsolidation
- Matrix tyre profile for improved self-driving effect
- Improved crumbling even under tough conditions
The DW Disc roller has been designed in particular for operation on heavy, moist soils. Thanks to its high weight of 220 kg/m working width and the narrow ribs, the disc-roller creates both a very good and deep reconsolidation on heavy soils as well as leaving a good crumbling effect.
- Clods of soil are cut and stones are pressed into the soil
- Low susceptibility to clogging
Cage roller
The SW cage roller is a reliable, inexpensive entry-level roller with a particularly low weight and with good crumbling and an open surface structure.
- Reconsolidation with depth control
- Extremely lightweight entry-level roller, especially suitable for smaller tractors
Wedge ring roller
The KW wedge ring roller benefits from a wide range of applications. Its design ensures reconsolidation in strips in almost all soils under any conditions. The sticking of any dirt, capping or blockages is not an issue!
- Universal for all soils and conditions
- Strip-wise reconsolidation
Matrix roller
The KWM wedge ring roller, with its Matrix tyre profile offers a particularly good self-driving effect. The roller produces more fine soil for the seedbed due to the Matrix profile.
- Strip-wise reconsolidation
- Matrix tyre profile for improved self-driving effect
- Improved crumbling even under tough conditions

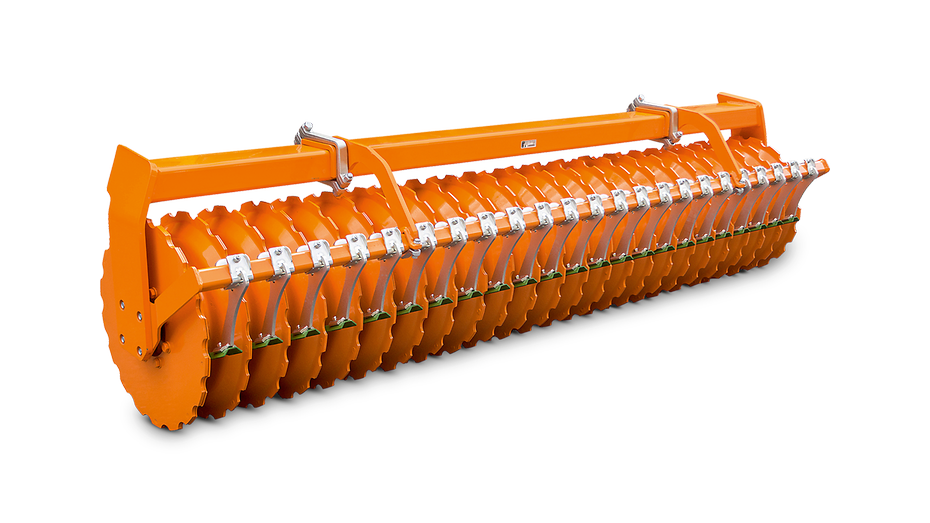

Disc roller
The DW Disc roller has been designed in particular for operation on heavy, moist soils. Thanks to its high weight of 220 kg/m working width and the narrow ribs, the disc-roller creates both a very good and deep reconsolidation on heavy soils as well as leaving a good crumbling effect.
- Clods of soil are cut and stones are pressed into the soil
- Low susceptibility to clogging
Specifications
4000-2TX |
5000-2TX |
6000-2TX |
7000-2TX |
|
|---|---|---|---|---|
| Working width (m) | 4.0 | 5.0 | 6.0 | 7.0 |
| Number of discs | 32 | 40 | 48 | 56 |
| Disc diameter (mm) | 510 | 510 | 510 | 510 |
| Number of tines | 10 | 12 | 15 | 17 |
| Tine working depth (cm) | 5-35 | 5-35 | 5-35 | 5-35 |
