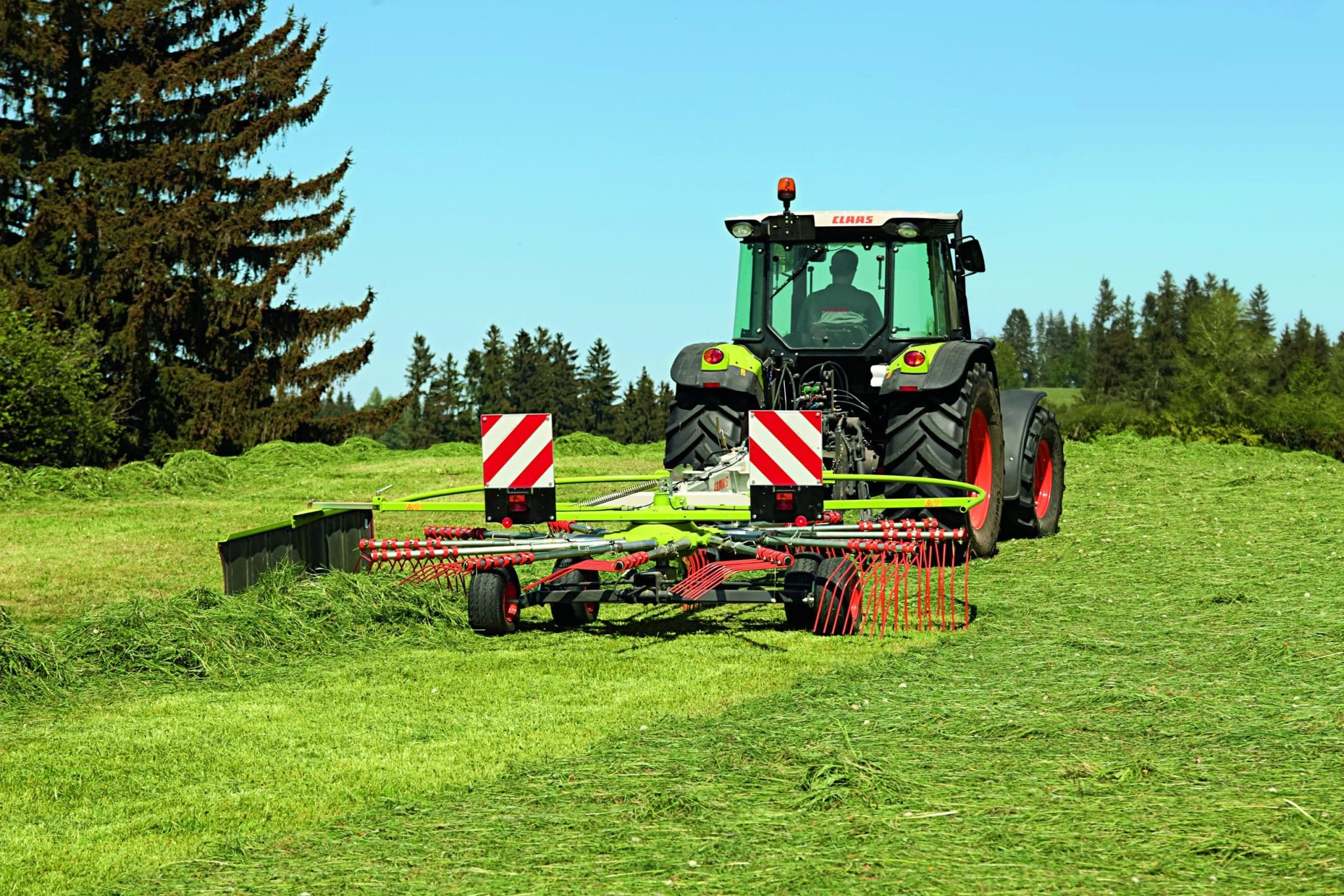

CLAAS LINER Single-Rotor Rake
The LINER single-rotor rakes are specially developed for farmers who prefer to handle their forage harvesting independently, and who often work in smaller fields. The working widths of 3.70 to 4.80 m are ideal for these situations. Whether with three-point hitching or as a trailed model, the key features of the LINER single-rotor rakes are precise ground-contour following, high work rates and outstanding reliability.
Features
Rotor drive assembly
Attachment and removal
Quick tine arm replacement
Precision raking
Stable on slopes and when cornering
The rotor drive assembly in the LINER runs in an oil bath to ensure continuous lubrication and exceptional reliability. Furthermore, the generously dimensioned spheroidal graphite cast iron cam track guarantees a long service life.
All single-rotor swathers are easy to hitch and remove. As well as a handy parking position for the drive shaft, they also feature a parking stand which is very easy to operate.
The PROFIX tine arm attachment system allows you to prepare the machine for transport in next to no time – or minimise downtimes if a tine arm gets bent. The LINER 500-420 are equipped with this.
In the event of a collision, the predefined bending points on the tine arms break off outside the rotor housing, providing optimum protection for the core element.
The rake height can be adjusted via a crank lever or optionally, hydraulically from the cab, for perfect precision raking. The position of the swath curtain can be fixed via an easy-to-operate clamping bolt.
CLAAS suspension prevents the machine from overrunning on slopes. It also provides suspension for the main frame, locks the 3-point hitch for road travel and stabilises the machine.
Rotor drive assembly
The rotor drive assembly in the LINER runs in an oil bath to ensure continuous lubrication and exceptional reliability. Furthermore, the generously dimensioned spheroidal graphite cast iron cam track guarantees a long service life.
Attachment and removal
All single-rotor swathers are easy to hitch and remove. As well as a handy parking position for the drive shaft, they also feature a parking stand which is very easy to operate.
Quick tine arm replacement
The PROFIX tine arm attachment system allows you to prepare the machine for transport in next to no time – or minimise downtimes if a tine arm gets bent. The LINER 500-420 are equipped with this.
In the event of a collision, the predefined bending points on the tine arms break off outside the rotor housing, providing optimum protection for the core element.
Precision raking
The rake height can be adjusted via a crank lever or optionally, hydraulically from the cab, for perfect precision raking. The position of the swath curtain can be fixed via an easy-to-operate clamping bolt.
Stable on slopes and when cornering
CLAAS suspension prevents the machine from overrunning on slopes. It also provides suspension for the main frame, locks the 3-point hitch for road travel and stabilises the machine.
Specifications
370 |
420 |
450 |
450 T |
500 |
|
|---|---|---|---|---|---|
| Working width (m) | 3.7 | 4.2 | 4.5 | 4.5 | 4.8 |
| Rotors | 1 | 1 | 1 | 1 | 1 |
| Rotor diameter (m) | 2.9 | 3.2 | 3.5 | 3.5 | 3.8 |
| Tine arms (per rotor) | 11 | 12 | 12 | 12 | 14 |
