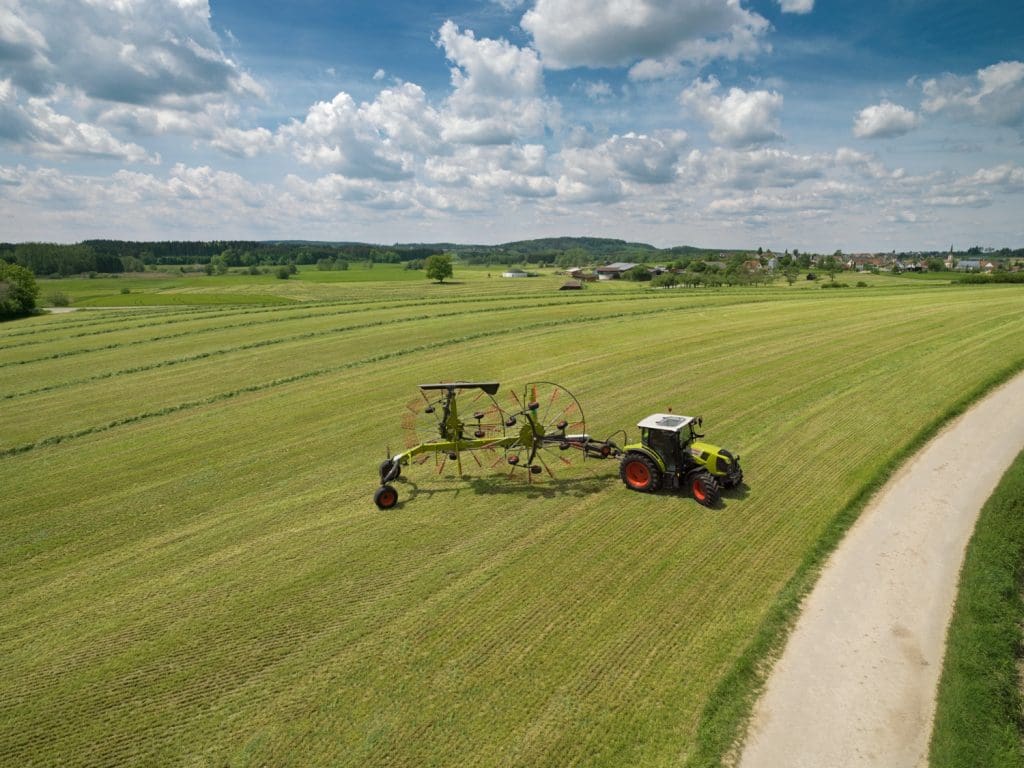

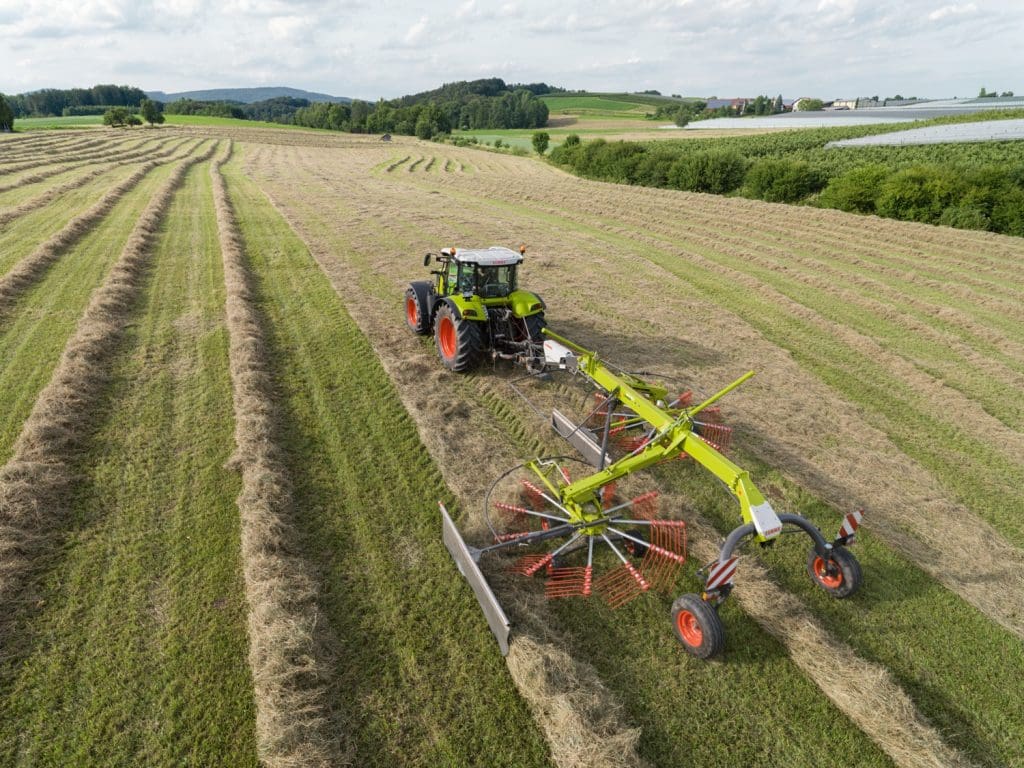

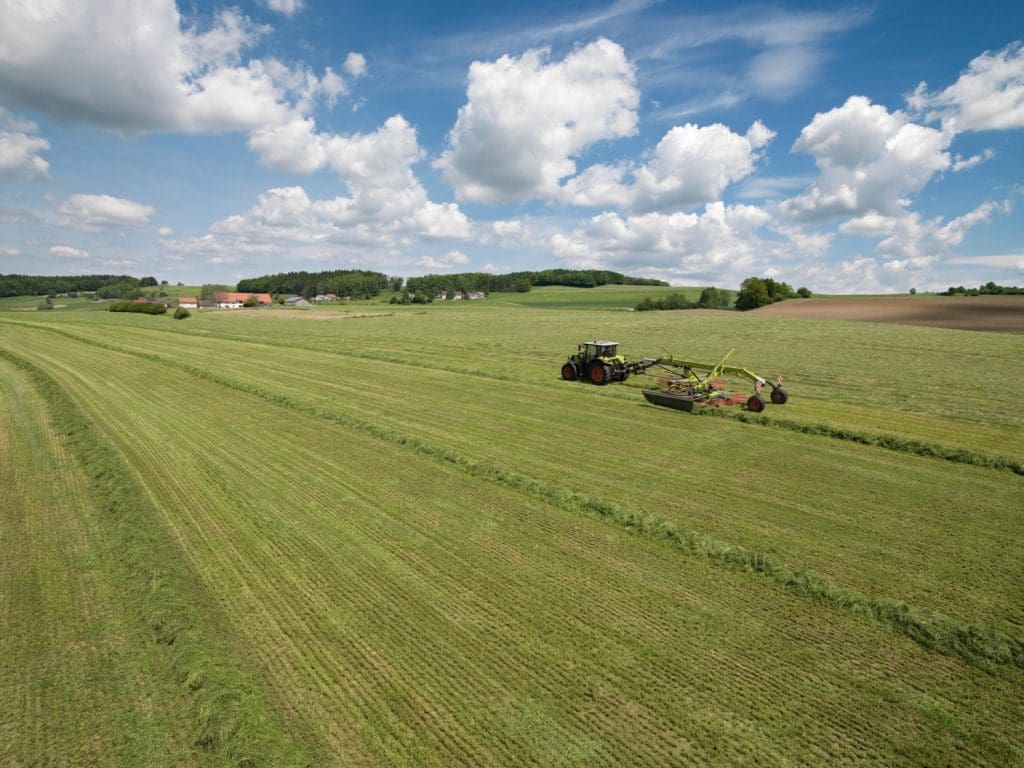

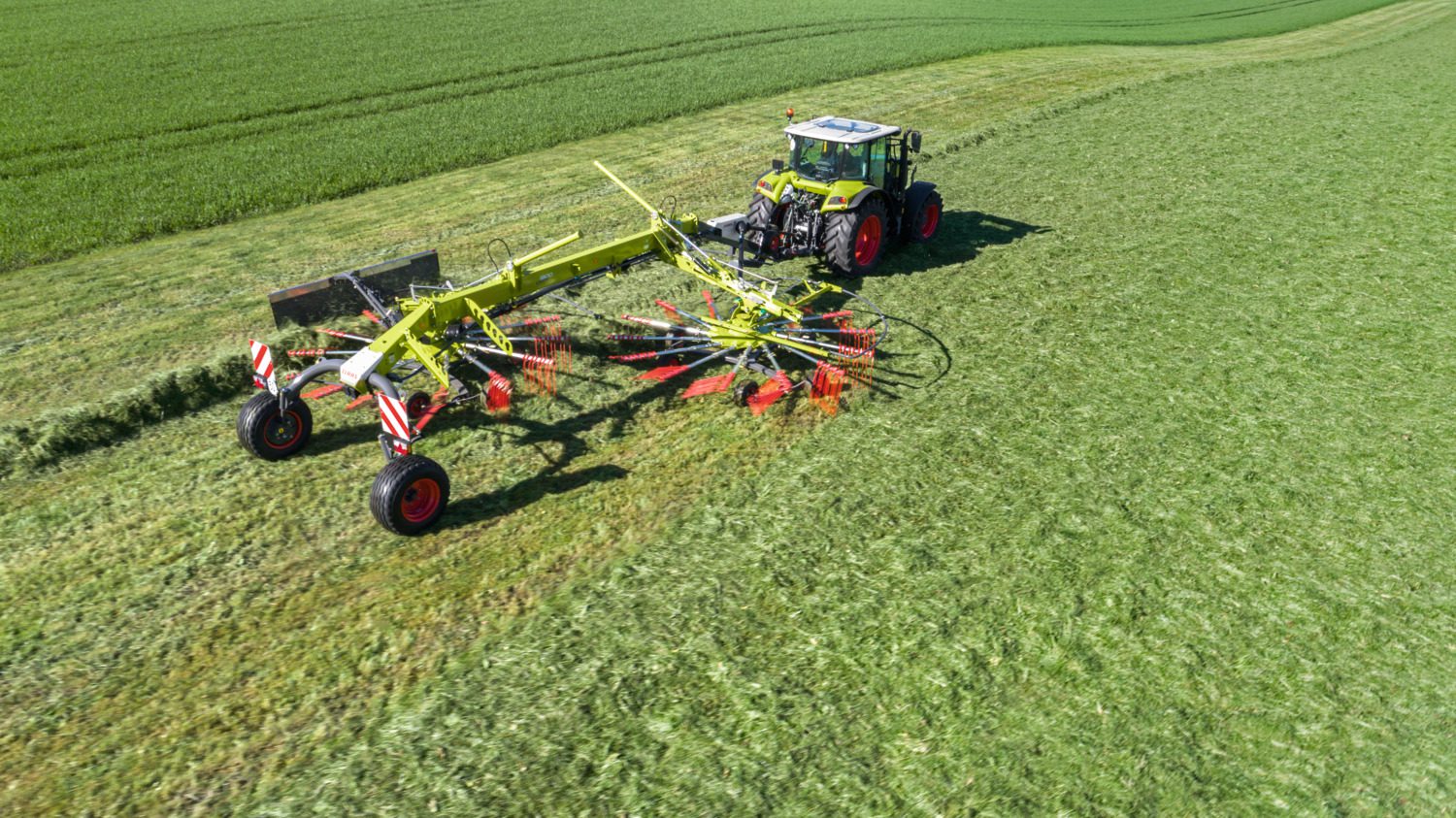

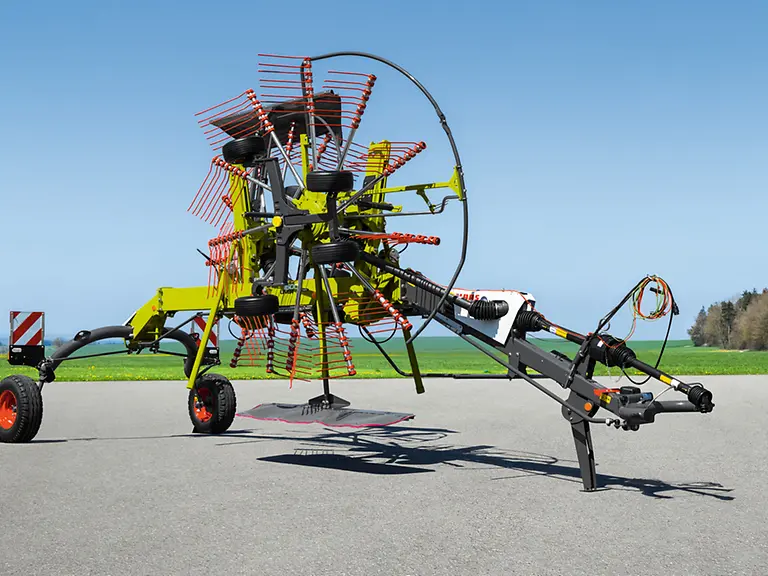

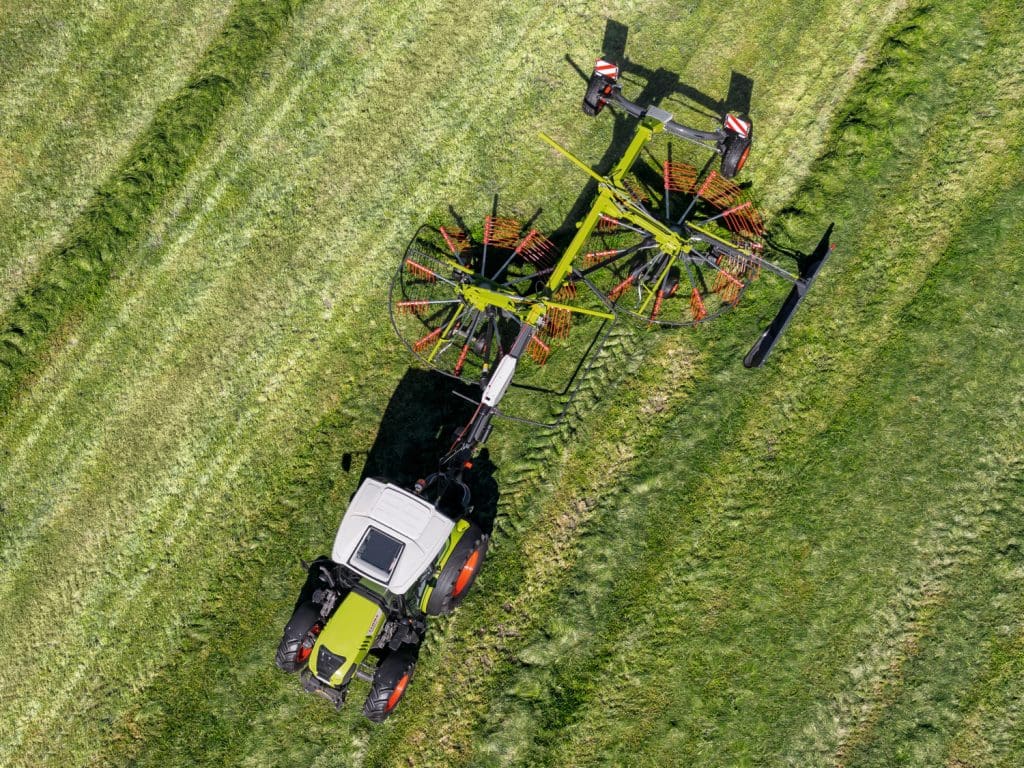

CLAAS LINER Dual-Rotor Side Swather

Harness peak performance and forage quality with the CLAAS LINER rotary hay rake and swather. Designed for reliable operation at maximum efficiency, while protecting your soil and grass cover.

CLAAS LINER Dual-Rotor Side Swather

PROFIX tine arm attachment system

The patented PROFIX fastening bracket makes it very easy to change the arms. The 20-spline shaft on the tine arms ensures a perfect fit with zero play.

The CLAAS spheroidal graphite iron cam track

High performance under all conditions – its spheroidal graphite iron construction gives the cam track the strength required to withstand any load.

Drive and maintenance

The drive train of the LINER is externally mounted and easily accessible.

JET effect

During lifting, the front section of the rotor is raised first and during lowering, the rear chassis wheels touch down before the front wheels – keeping a clean crop.

Swathing transmission

Continuously lubricated rotor drive assembly for professionals.

Specifications

	1900	1800 TWIN	1700 TWIN
Working width (m)	8.05	7.45-8.40	6.70-7.85
Swathing rotor	2	2	2
Swathing rotor diameter (mm)	3,800	3,500	3,200
Tine bars per swathing rotor	14	12	12
PROFIX tine arm attachment system	Yes	Yes	Yes
