CLAAS LINER Dual-Rotor Central Swather

CLAAS LINER, the ultimate hay rake & swather for every harvest chain.

Harness peak performance and forage quality with the CLAAS LINER rotary hay rake and swather. Designed for reliable operation at maximum efficiency, while protecting your soil and grass cover.

CLAAS Dual-Rotor Central Swather

CLAAS Dual-Rotor Central Swather
Swathing transmission The CLAAS spheroidal graphite iron cam track Drive and maintenance JET effect PROFIX tine arm attachment system

Swathing transmission

Continuously lubricated rotor drive assembly for professionals

The CLAAS spheroidal graphite iron cam track

High performance under all conditions – its spheroidal graphite iron construction gives the cam track the strength required to withstand any load.

Drive and maintenance

The drive train of the LINER is externally mounted and easily accessible.

JET effect

During lifting, the front section of the rotor is raised first and during lowering, the rear chassis wheels touch down before the front wheels – keeping a clean crop.

PROFIX tine arm attachment system

The patented PROFIX fastening bracket makes it very easy to change the arms. The 20-spline shaft on the tine arms ensures a perfect fit with zero play.

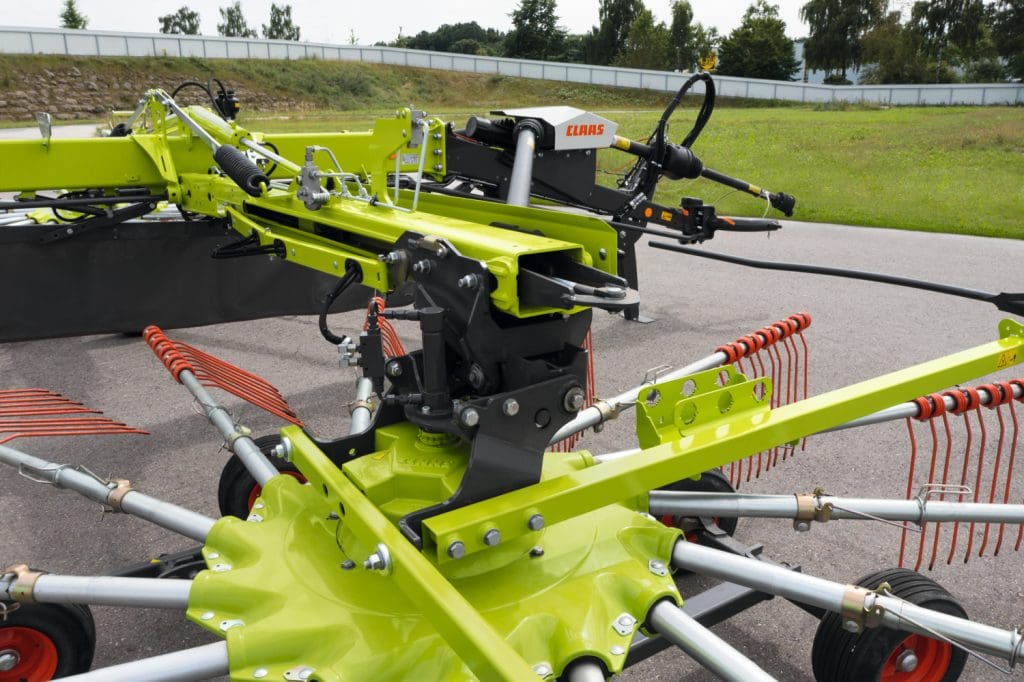

swather for a claas liner
div background image

BUSINESS vs. TREND


The BUSINESS model comes with hydraulic ACTIVE FLOAT rotor suspension and a CEMIS 10 terminal, which handles preselection control for individual lifting of the rotors.

In the TREND version the LINER is mechanically sprung suspended and operated directly via the tractor spool valves.

Specifications

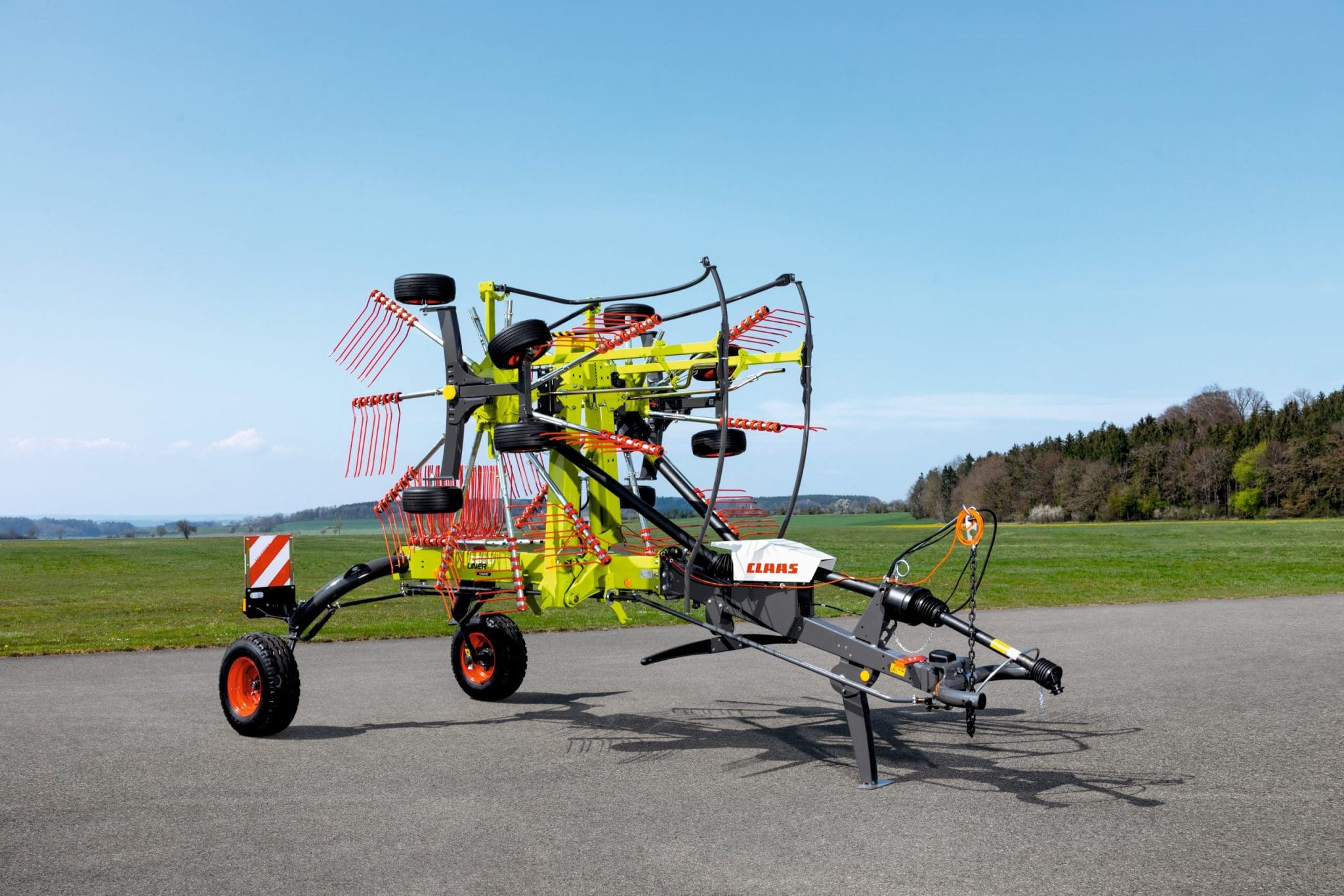

image of liner
  3100 TREND 2900 BUSINESS 2900 TREND 2800 BUSINESS 2800 TREND 2700 TREND 2600 TREND
Working width (m) 8.70-10.00 8.20-9.00 8.00-9.00 7.50-8.20 7.40-8.20 6.80-7.40 6.20-6.80
Swathing rotor 2 2 2 2 2 2 2
Swathing rotor diameter (mm) 4,200 3,800 3,800 3,500 3,500 3,200 2,900
Tine bars per swathing rotor 14 14 14 12 12 12 11
PROFIX tine arm attachment system Yes Yes Yes Yes Yes Yes No
Rotor undercarriage (no. of wheels) 4 6 4 6 4 4 4
