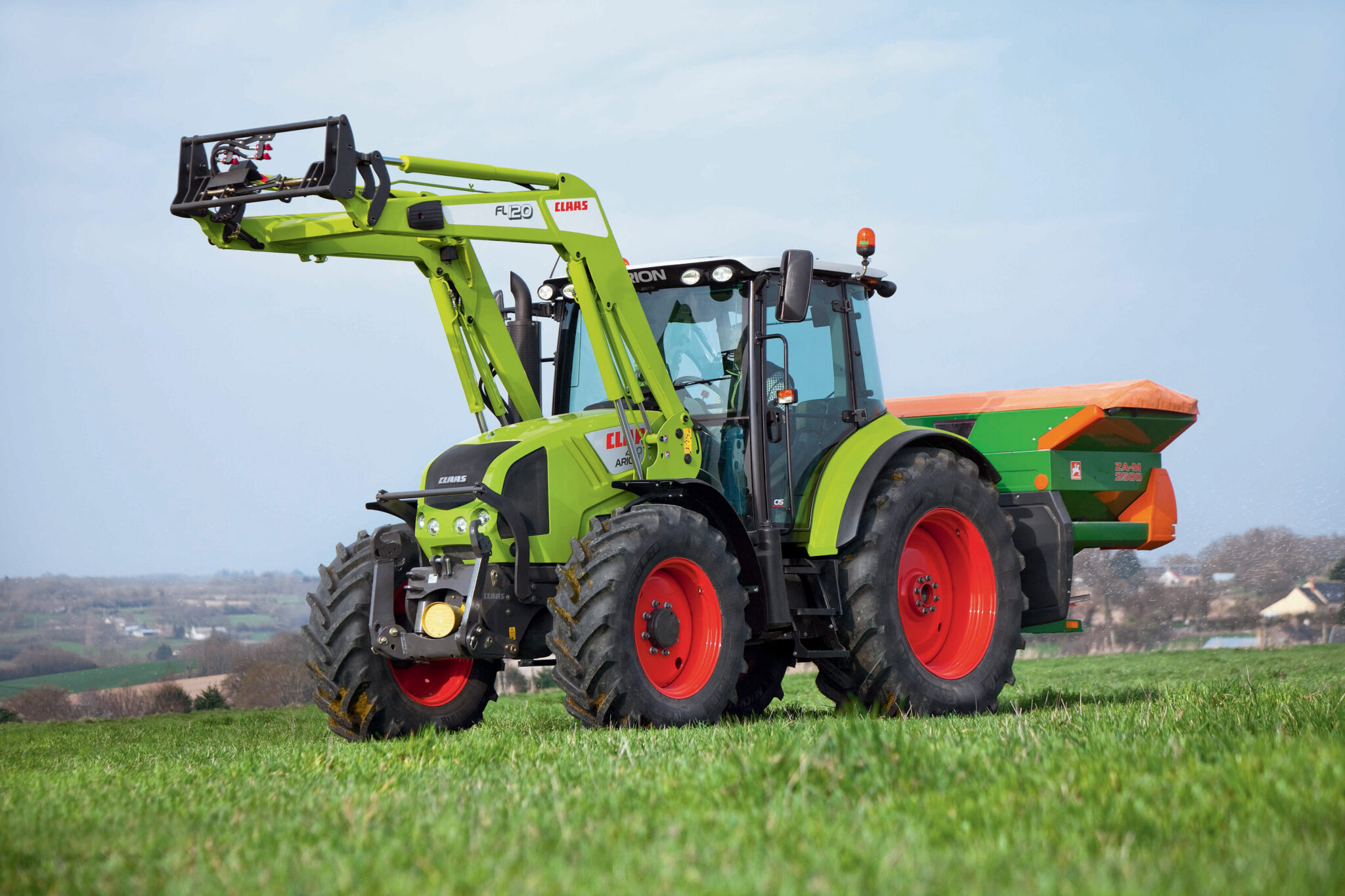

CLAAS ARION 400 Tractors
Your everyday farm tractor – this multi-purpose farming tractor built for work. The CLAAS ARION 400 series tractors provide 110-130 hp to see you through baling, ploughing, spraying, and transport work. Compact and manoeuvrable for yard work, an ergonomic and spacious cab offers great visibility during loader operation, ARION 400 is your go-to farming tractor.
Features
First class comfort
Simple operation
Efficient power
Negotiating low shed entrances, shifting straw bales, pulling and lifting heavy tillage machinery – the ARION 400 demonstrates the full efficacy of its compact and intelligent design. A long wheelbase and ideal weight distribution bring excellent stability. The short overall length contribute to good manoeuvrability, visibility and guidance of front attachment devices.

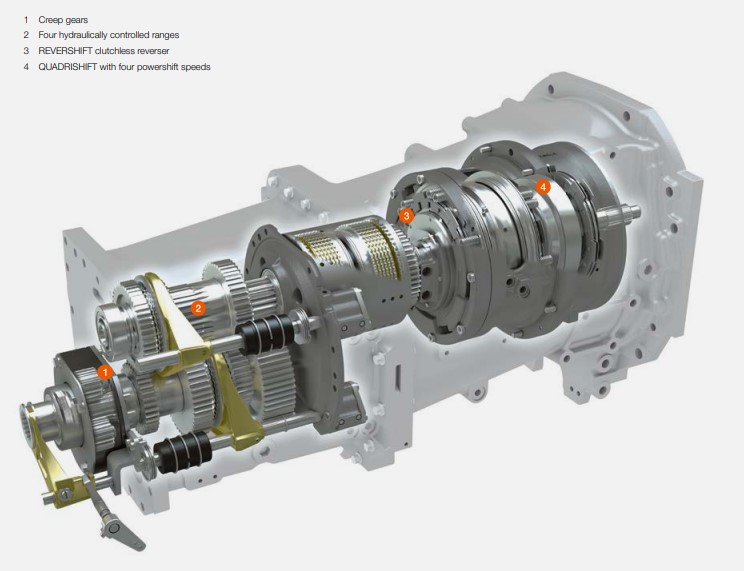

The ARION 400 is characterised by its intuitive and simple operation. The clearly laid-out instrument panel provides all the necessary information at a glance. The QUADRISHIFT transmission is operated effortlessly – access 16 gears at the push of a button. You can also switch between all four ranges and powershift speeds via a toggle switch on the joystick.
1. Creep gears
2. Four hydraulically controlled ranges
3. REVERSHIFT clutchless reverser
4. QUADRISHIFT with four powershift speeds
The CLAAS ARION 400 engine is designed for consistent performance, delivering strong torque and responsive power across all working conditions. With up to 130 hp and intelligent power management, it provides reliable output and extra power when needed for demanding tasks.

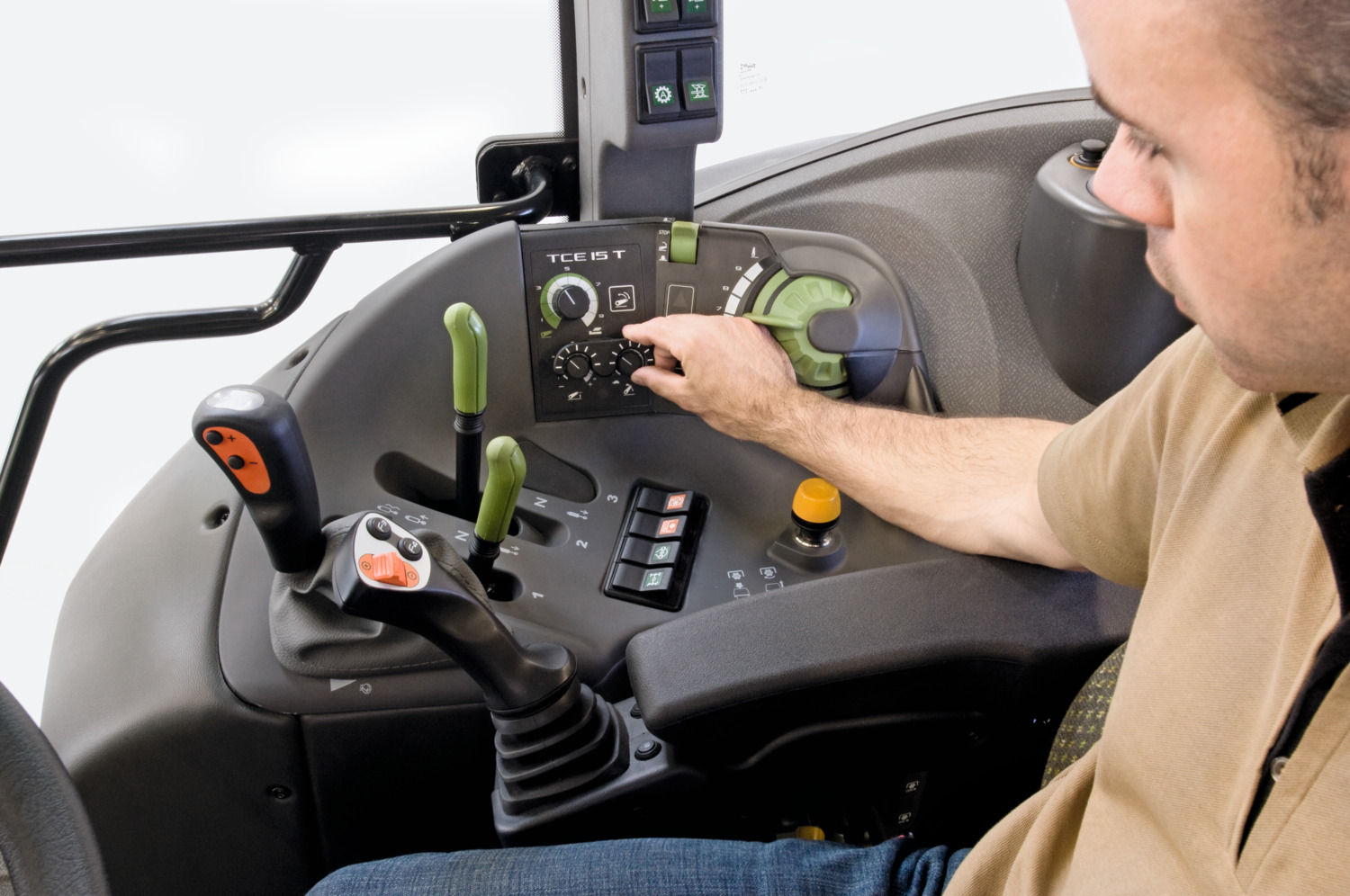

First class comfort
Negotiating low shed entrances, shifting straw bales, pulling and lifting heavy tillage machinery – the ARION 400 demonstrates the full efficacy of its compact and intelligent design. A long wheelbase and ideal weight distribution bring excellent stability. The short overall length contribute to good manoeuvrability, visibility and guidance of front attachment devices.
Simple operation
The ARION 400 is characterised by its intuitive and simple operation. The clearly laid-out instrument panel provides all the necessary information at a glance. The QUADRISHIFT transmission is operated effortlessly – access 16 gears at the push of a button. You can also switch between all four ranges and powershift speeds via a toggle switch on the joystick.
1. Creep gears
2. Four hydraulically controlled ranges
3. REVERSHIFT clutchless reverser
4. QUADRISHIFT with four powershift speeds

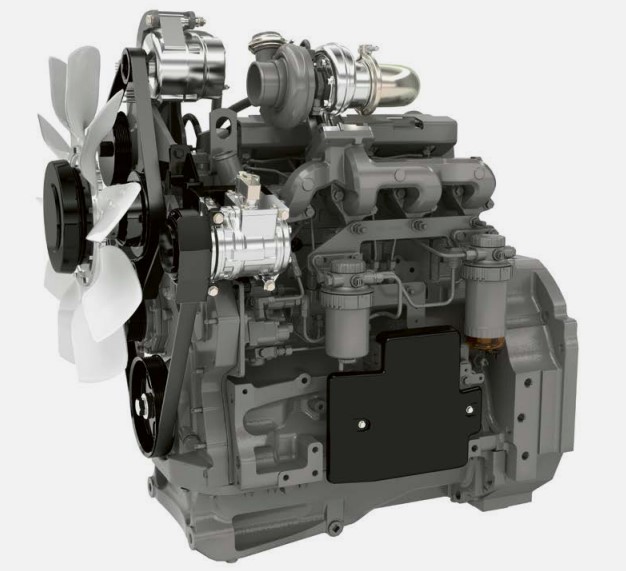

Efficient power
The CLAAS ARION 400 engine is designed for consistent performance, delivering strong torque and responsive power across all working conditions. With up to 130 hp and intelligent power management, it provides reliable output and extra power when needed for demanding tasks.
Specifications
410 |
420 |
430 |
|
|---|---|---|---|
| Engine | DPS | DPS | DPS |
| Number of cylinders | 4 | 4 | 4 |
| Cubic capacity (cm3) | 4525 | 4525 | 4525 |
| Max. output (kW/hp) | 75/100 | 81/110 | 88/120 |
| Max. output with CPM (kW/hp) | 81/110 | 88/120 | 95/130 |
| Max. torque (Nm) | 460 | 500 | 510 |
| Hydraulic flow rate speed (L/min) | 98 | 98 | 98 |
