AMAZONE Cirrus 03 Seed Drill
The Cirrus trailed cultivator drill is a pneumatic seed drill which is characterised by its superb working performance; both in conventional and mulch sowing. With working widths in 3 m to 6 m and hopper sizes of 3,000 l to 4,000 l, the Cirrus range is highly efficient. Due to their flexibility and different conveying system concepts, the Cirrus models offer the right solution for any farm, from small, compact sowing combinations to large-scale seed drills.
Features
Comfortable filling
Segmented distribution
Accurate metering drive
Optimal centre of gravity

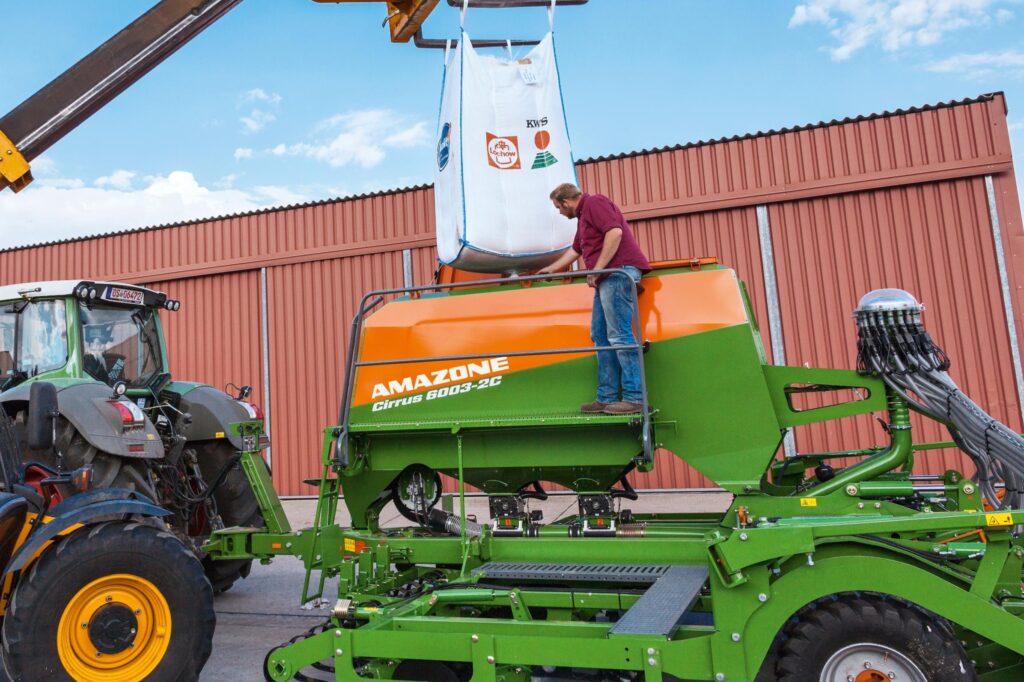

Steps ease climbing up and the safe loading platform with railing eases access to the seed hopper. The tank can be simply filled from small bags, big bags, via a filling auger on a trailer or a loading shovel. The simple to handle folding lid ensures the airtight closing of the hopper.

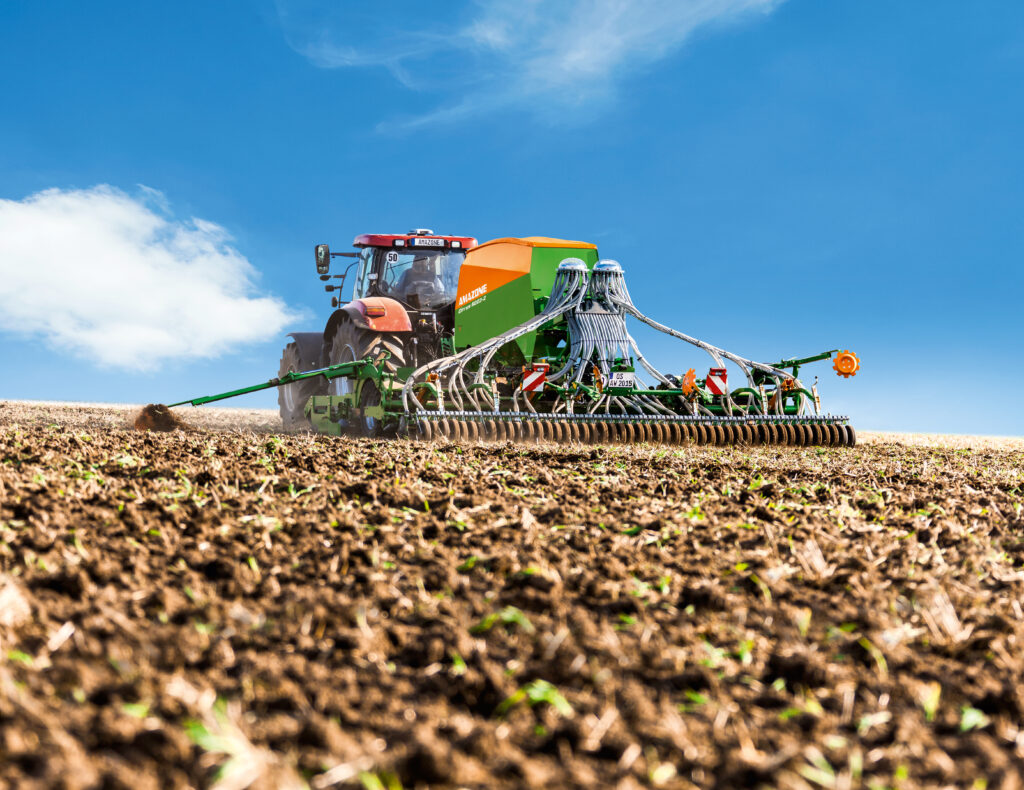

The segmented distributor head provides huge flexibility for the pneumatic seed drill. With immediate effect, asymmetrical tramlines can be carried out without an undesirable seed rate reduction on the other half of the machine. The segmented distribution head facilitates the electric half-side shut-off. The half-side shut-off is located directly in the distribution head.
The metering system is suitable for all seeds and sowing rates from 1.5 to 400 kg/ha. Over-sized metering cassettes produce a low peripheral speed protecting the seed from damage. Conversion from fine seeds to normal seeds is done in seconds by exchanging the metering cassettes. They can even be changed when the seed hopper Is full.

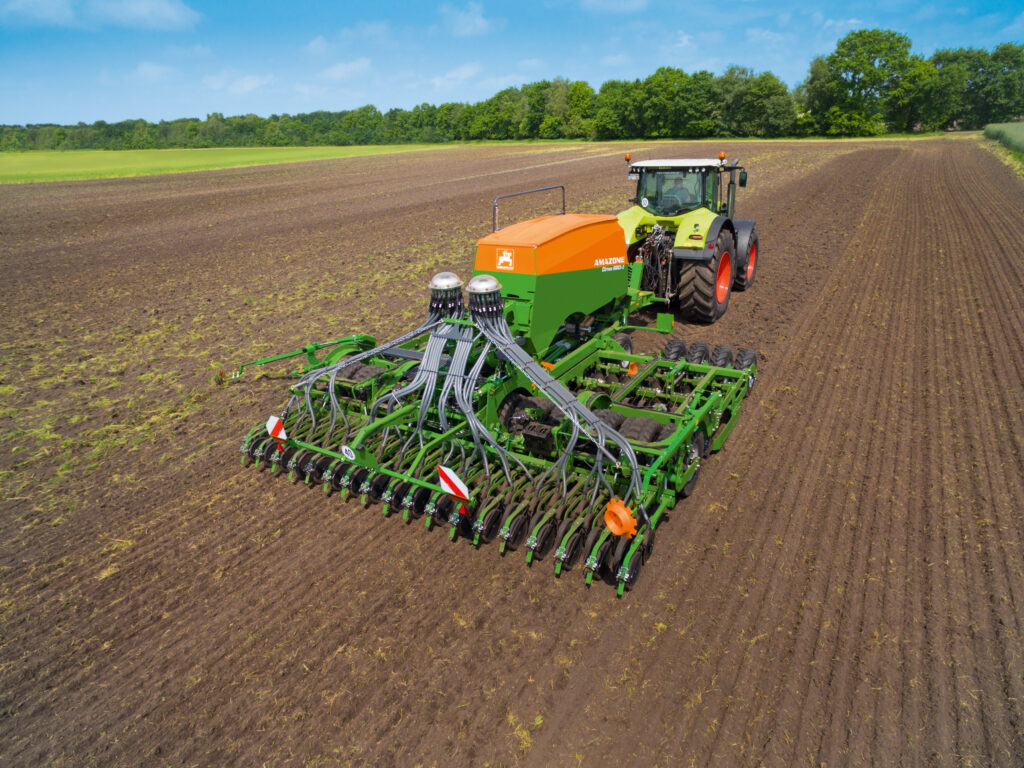

Large hopper capacities of up to 4,000 l reduce the refill times to a minimum. The hopper on the Cirrus has an optimally arranged centre of gravity and provides excellent visibility, despite its considerable size.
Comfortable filling
Steps ease climbing up and the safe loading platform with railing eases access to the seed hopper. The tank can be simply filled from small bags, big bags, via a filling auger on a trailer or a loading shovel. The simple to handle folding lid ensures the airtight closing of the hopper.
Segmented distribution
The segmented distributor head provides huge flexibility for the pneumatic seed drill. With immediate effect, asymmetrical tramlines can be carried out without an undesirable seed rate reduction on the other half of the machine. The segmented distribution head facilitates the electric half-side shut-off. The half-side shut-off is located directly in the distribution head.
Accurate metering drive
The metering system is suitable for all seeds and sowing rates from 1.5 to 400 kg/ha. Over-sized metering cassettes produce a low peripheral speed protecting the seed from damage. Conversion from fine seeds to normal seeds is done in seconds by exchanging the metering cassettes. They can even be changed when the seed hopper Is full.
Optimal centre of gravity
Large hopper capacities of up to 4,000 l reduce the refill times to a minimum. The hopper on the Cirrus has an optimally arranged centre of gravity and provides excellent visibility, despite its considerable size.
Specifications
4003-2 |
6003-2 |
|
|---|---|---|
| Working width (m) | 4.00 | 6.00 |
| Transport width (m) | 3.00 | 3.00 |
| Volume of the 2 chamber hopper (L) | 4000 (2400 front 1600 rear) | 4000 (2400 front 1600 rear) |
| RoTeC pro coulters or TwinTeC plus coulters (cm) | 12.5 or 16.6 | 12.5 or 16.6 |
