AMAZONE Centaya Mounted Seed Drill

From choice, the Centaya Super can be specified with either a 1,600 l or with a 2,000 l seed hopper. Via the steps and loading board, the hopper, which is made from plastic, can be easily accessed from the left hand side of the machine. The drill is positioned well forward and thus offers an optimum centre of gravity close to the tractor.

The deep hopper tip and steep hopper walls reliably guide the seed corn down to the metering unit. Furthermore, this design means that only small residual volumes are left in the hopper.

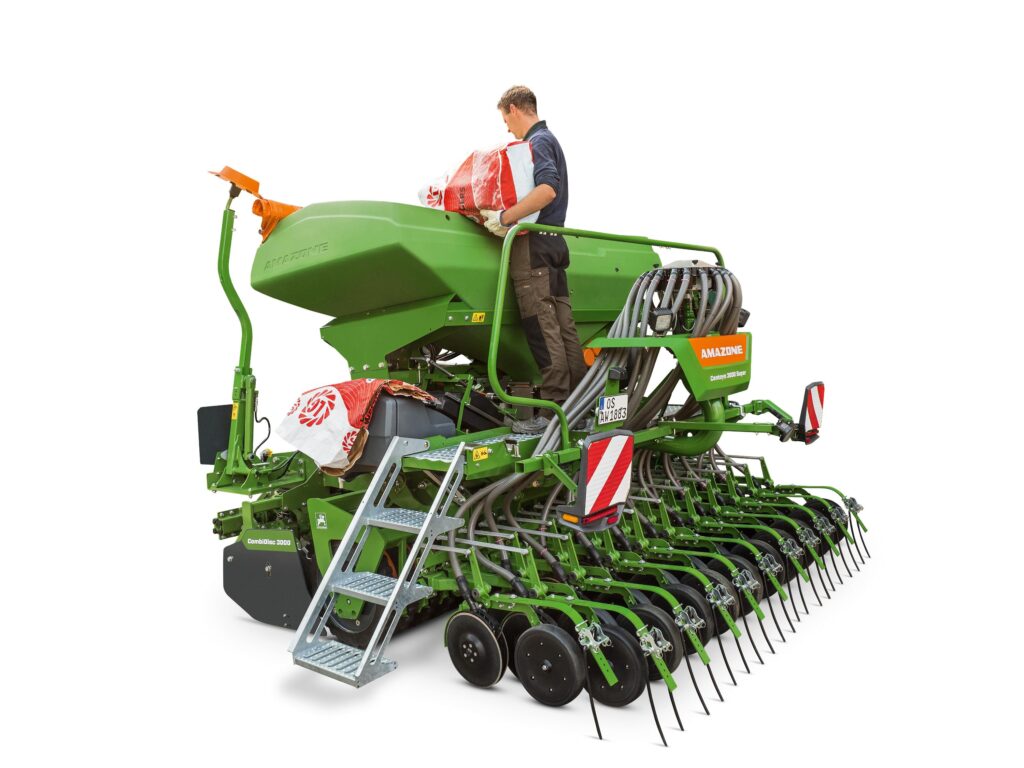

An especially wide loading board, accessible via folding rear steps, simplifies the filling of the seed drill. The very spacious 2.43 x 0.91 m hopper opening enables a quick and convenient filling, not just from big bags, front end loaders, but also via small sacks.

When filling via small sacks, the protective sieves in the seed hopper can be utilised as a loading aid. Extra sacks of seed can also be placed on the sieves and transported to the field.

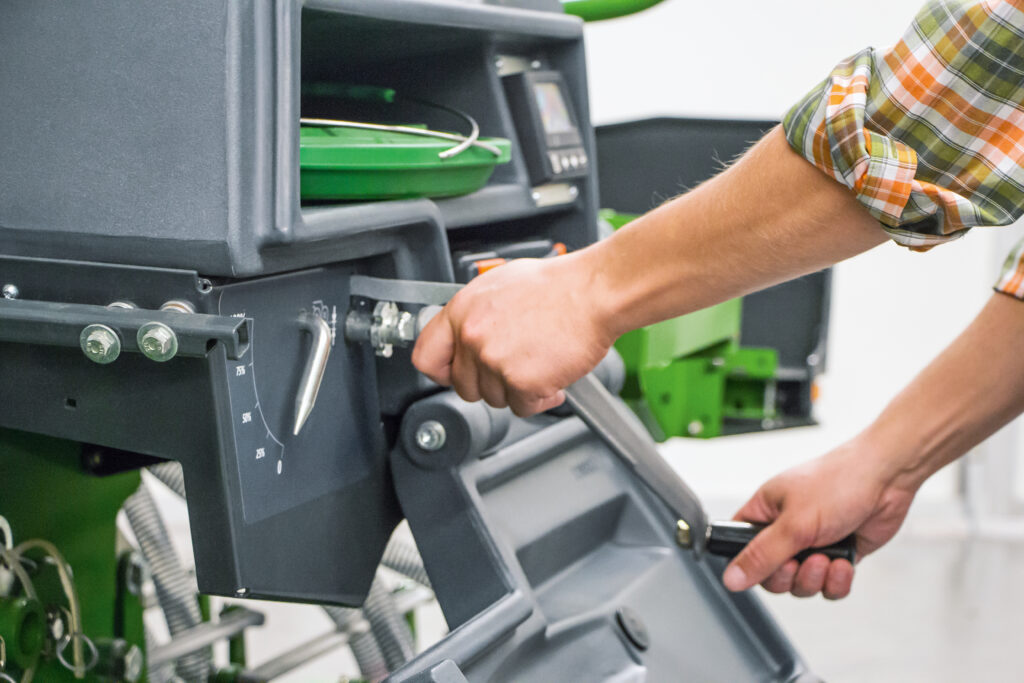

Via the SmartCenter, AMAZONE offers a very simple and clear layout of all the most important adjustments. The sowing depth and the coulter pressure in the SmartCenter are centrally adjusted independently of each other from the left-hand side. The universal operating tool enables the settings to be carried out quickly and easily.

Convenient calibration via the SmartCenter on the left-hand side of the drill thanks to the calibration button or, as an option, using the TwinTerminal 3.0. For this, the tray for the calibration is placed directly underneath the metering unit. Subsequently the calibration tray can be removed comfortably via the SmartCenter. Thanks to the intelligent integration of this function, the calibration tray can be removed only when the metering flap has been closed via the remote linkage.
