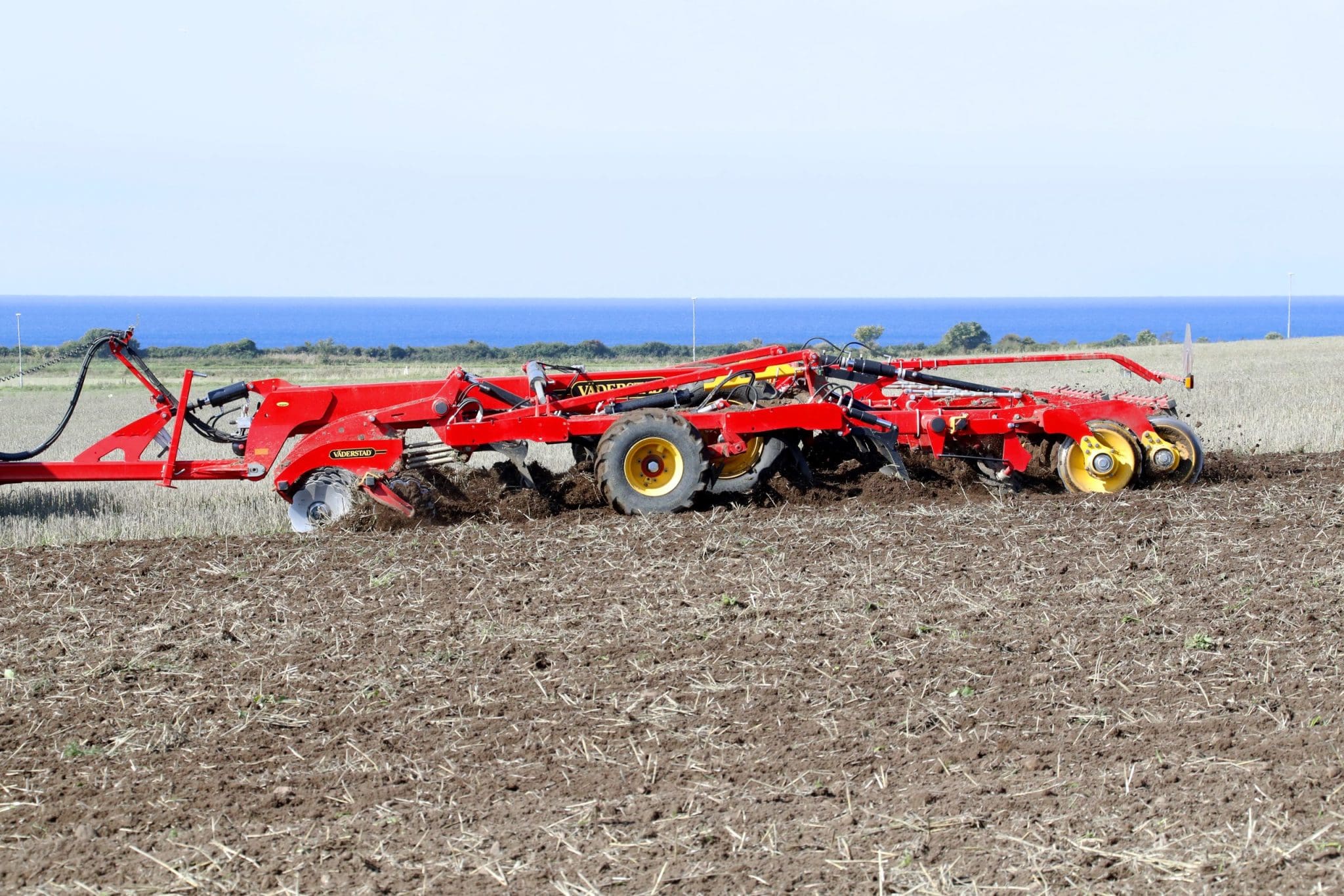

VÄDERSTAD TopDown 400-700 Combination Cultivator
TopDown 400-700 is a high intensity multipurpose cultivator, performing both a full-scale shallow cultivation and a deep cultivation in one single pass. By adapting the working result to different conditions in the field, TopDown is a highly versatile multipurpose cultivator with an unmatched performance. TopDown reduce passes, preserves ground moisture, increases capacity and lowers the establishment costs.
Features

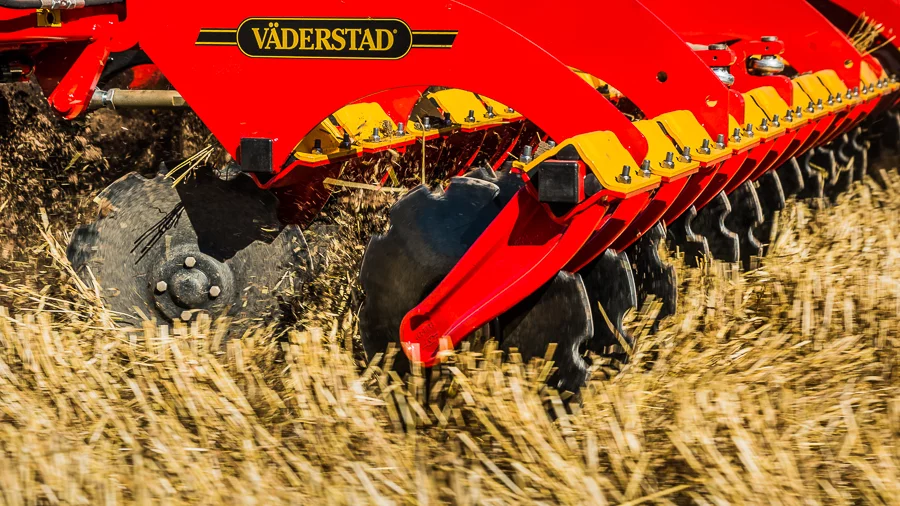

High quality discs
Multiple operations in one pass
Effective mixing and loosening
The high quality discs are produced using specialist hardened Swedish V-55 steel. The discs provide intensive cutting and mixing of soil and crop residue. To adapt to varying soil conditions, the working intensity of the discs can be adjusted from the cab on the move. Thanks to the discs conical shape, they maintain the same working angle relative to the soil, irrespective of wear or working depth.
TopDown is a multipurpose cultivator, combining an intensive disc cultivator along with a robust three axle tine cultivator in the same machine. The 12.5cm spaced discs on individually suspended disc arms, creates fine tilth by cutting and mixing the top soil. The 27cm spaced tines then loosen and mix the soil and crop residues down to 30cm working depth. In the final two working zones, the leveller and packer then concludes by ensuring an even and fully reconsolidated surface.
With 27 cm tine spacing, TopDown intensively mixes and loosens the soil down to 30 cm depth. With DeepLoosening points the working depth increases to 40 cm. The 700 kg stone release system maintains the correct working depth in all conditions, contributing to an even crop growth.

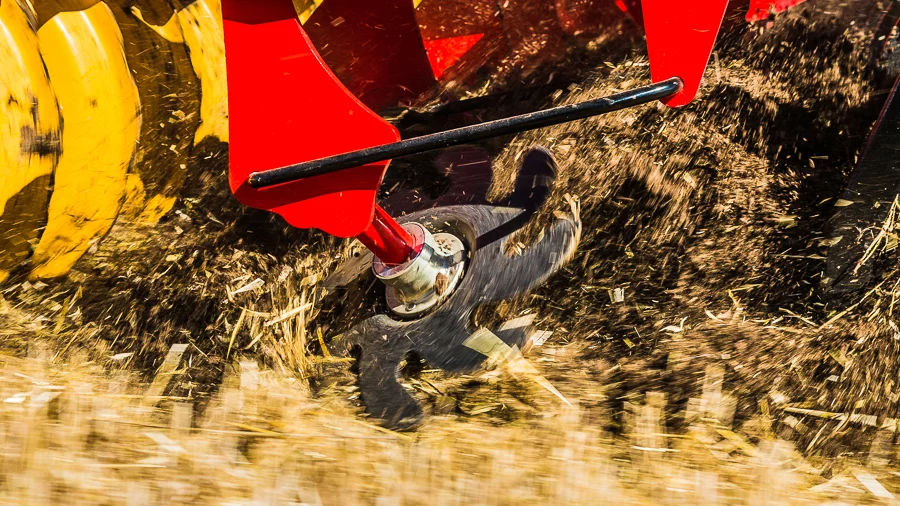

High quality discs
The high quality discs are produced using specialist hardened Swedish V-55 steel. The discs provide intensive cutting and mixing of soil and crop residue. To adapt to varying soil conditions, the working intensity of the discs can be adjusted from the cab on the move. Thanks to the discs conical shape, they maintain the same working angle relative to the soil, irrespective of wear or working depth.
Multiple operations in one pass
TopDown is a multipurpose cultivator, combining an intensive disc cultivator along with a robust three axle tine cultivator in the same machine. The 12.5cm spaced discs on individually suspended disc arms, creates fine tilth by cutting and mixing the top soil. The 27cm spaced tines then loosen and mix the soil and crop residues down to 30cm working depth. In the final two working zones, the leveller and packer then concludes by ensuring an even and fully reconsolidated surface.
Effective mixing and loosening
With 27 cm tine spacing, TopDown intensively mixes and loosens the soil down to 30 cm depth. With DeepLoosening points the working depth increases to 40 cm. The 700 kg stone release system maintains the correct working depth in all conditions, contributing to an even crop growth.
