CLAAS ARION 510-660 Tractor
CLAAS ARION 510-660 Tractor
Lighten up your daily workload with ARION 500/600 advanced technology tractors.

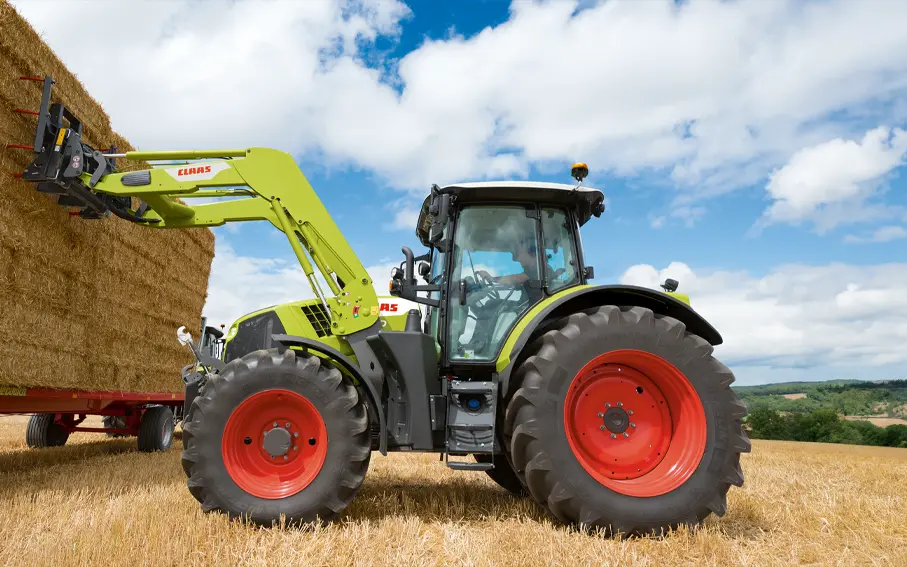

CLAAS ARION 510-660 Tractor
This advanced technology tractor combines one of our most popular models with up to 205hp, a choice of three equipment variants with automatic functions designed for effective, effortless operation. Intelligent and efficient HEXASHIFT powershift and CMATIC continuously variable transmission options and first-class comfort. ARION 500/600 tractors give you the freedom to do more.
CLAAS ARION 510-600
Strong at heart
The CLAAS-specific engine performance curve provides full torque in a wide engine speed range, guaranteeing constant output and power delivery when they are needed. This makes it easy to save fuel while working at a low engine speed and maximum torque with the ECO PTO, or to work at rated speed with a full reserve.
Greater efficiency
The engine speed limiter is a great help when it comes to saving fuel. Simply set the maximum engine speed in advance and then you can focus fully on your work. The engine maintains the set speed regardless of how hard you depress the accelerator. This allows you to cut fuel consumption significantly.
Efficient powershift transmission
With HEXASHIFT you can shift effortlessly through all six powershift speeds and the four automatic ranges using your fingertips, or you can shift automatically using the HEXACTIV auto-shift function. Overlapping powershift speeds allow you to utilise the full output potential of the engine and provide smooth range shifting on the road.
Multiple display and arm rest option
CEBIS (pictured) – available with HEXASHIFT or CMATIC transmission, CEBIS features electronic spool valves and the superb CEBIS terminal with a 12″ touchscreen display. CEBIS functions include CSM headland management, camera image, ISOBUS implement control, CEMOS for tractors and spool valve prioritisation.
First class comfort

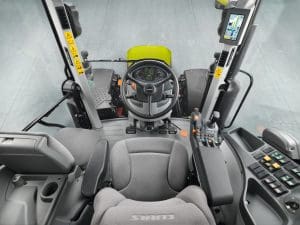

Enjoy a highly spacious, ergonomically designed cab with excellent visibility. The CLAAS ARION cab has generous headroom with multiple storage compartments, a passenger seat with integrated cooler box and LED headlights for perfect illumination around the machine at night.
Specifications
| 510 | 530 | 550 | 610 | 630 | 650 | 660 | |
|---|---|---|---|---|---|---|---|
| Engine | DPS | DPS | DPS | DPS | DPS | DPS | DPS |
| Number of cylinders | 4 | 4 | 4 | 6 | 6 | 6 | 6 |
| Cubic capacity (cm3) | 4525 | 4525 | 4525 | 6788 | 6788 | 6788 | 6788 |
| Max. output (ECE R 120) (kW/hp) | 92/125 | 107/145 | 121/165 | 107/145 | 121/165 | 136/185 | 151/205 (with CPM) |
| Max. torque (Nm) | 562 | 619 | 697 | 640 | 703 | 754 | 849 (with CPM) |
| Hydraulic load-sensing circuit L/min (optional) | 110 (150) | 110 (150) | 110 (150) | 110 (150) | 110 (150) | 110 (150) | 110 (150) |
Swipe to see more
CEMIS 1200
CEMIS 1200 serves as a modern, intuitive terminal for automatic steering and precision farming applications. The SAT 900 GNSS receiver mounted on the roof guarantees high precision and steering performance. Together, these two components of the GPS PILOT – seamlessly integrated into CLAAS machines – are a powerful combination.
Challenge Accepted.
This isn’t just another tractor — it’s a CLAAS.
Trusted in harvest and built for the field, every CLAAS tractor is engineered to handle the real conditions farmers and contractors face every day across New Zealand and Australia.
Whether you’re after precision, power, or comfort that keeps you going from dawn to dusk, this machine is ready.
Smart tech. Intuitive controls. Unmatched comfort.
Because the right tractor should make every job easier — and every result better. Ready to put it to the test?
