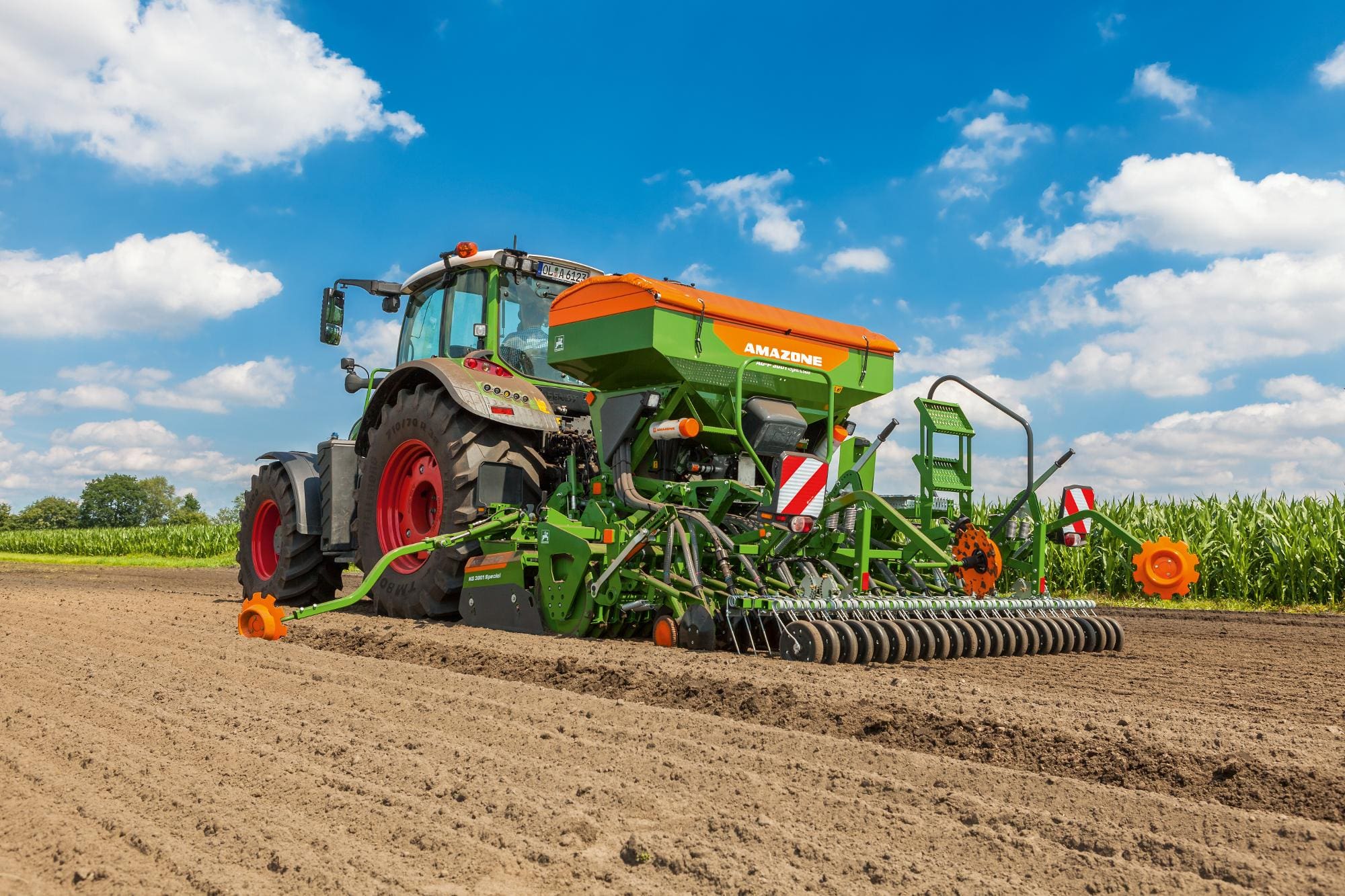

AMAZONE KG Power Harrow
With the KG power cultivators and the CombiDisc mounted compact disc harrow, AMAZONE offers you reliable soil tillage implements that precisely meet your requirements. Combined with your seed drill, or for solo use, the soil tillage implements stand for uncompromising reliability and quality like no other on the market. With various models of roller available, it is possible to specify a complete combination of soil tillage and drill that are perfectly matched to the prevailing soil conditions.
Features
Staggered tine layout
Cultimix system
Quality within the system
With AMAZONE power harrow, the tines are arranged in a specific offset position towards each other. This guarantees an even soil crumbling and a smoother machine running. Incidents of vibration and peak loading are thereby prevented. The machines suffer less stress, and the power and fuel requirement is reduced.

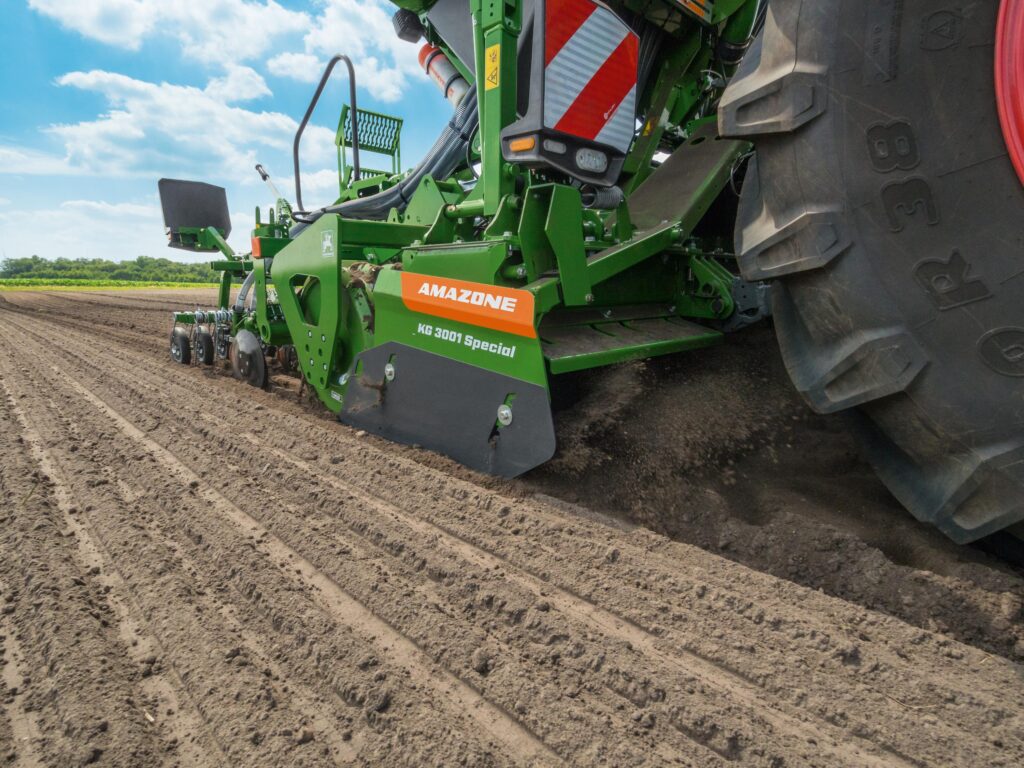

The “on-grip” tine position has proven its effectiveness particularly when mulch sowing as it guarantees a thorough mixing of soil and organic residues. Tines “on grip” break up the soil from beneath. No smeared layers. Coarse soil particles are thrown further than the light ones. In this way, the fine soil is concentrated in the lower range of the worked zone whereas the coarser soil particles remain on the surface. The seed is therefore placed in the area where the fine soil lies with the coarser clods staying on the surface to protect the soil from capping, drying and wind and water erosion.

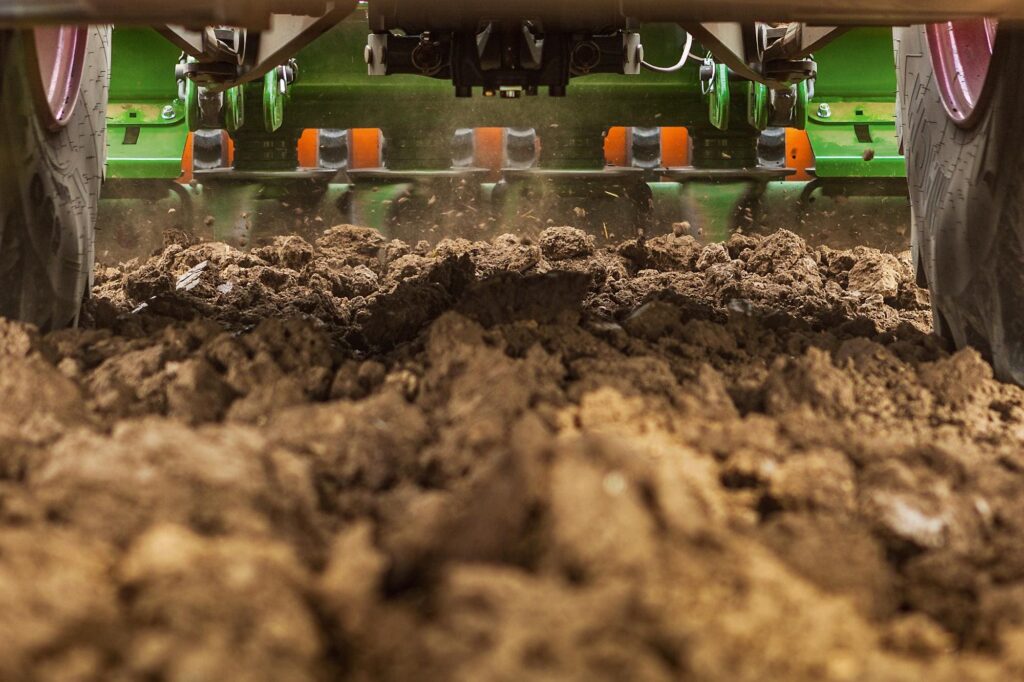

Long-Life-Drive is the optimised drive system for all AMAZONE power harrow that ensures an extended operating life, maximum smooth running and a high resale value. Gear wheels and bearings run in a single oil bath and so are maintenance-free – there are no grease nipples.
Staggered tine layout
With AMAZONE power harrow, the tines are arranged in a specific offset position towards each other. This guarantees an even soil crumbling and a smoother machine running. Incidents of vibration and peak loading are thereby prevented. The machines suffer less stress, and the power and fuel requirement is reduced.
Cultimix system
The “on-grip” tine position has proven its effectiveness particularly when mulch sowing as it guarantees a thorough mixing of soil and organic residues. Tines “on grip” break up the soil from beneath. No smeared layers. Coarse soil particles are thrown further than the light ones. In this way, the fine soil is concentrated in the lower range of the worked zone whereas the coarser soil particles remain on the surface. The seed is therefore placed in the area where the fine soil lies with the coarser clods staying on the surface to protect the soil from capping, drying and wind and water erosion.
Quality within the system
Long-Life-Drive is the optimised drive system for all AMAZONE power harrow that ensures an extended operating life, maximum smooth running and a high resale value. Gear wheels and bearings run in a single oil bath and so are maintenance-free – there are no grease nipples.
Additional options
Cage roller
Tooth packer roller
Wedge ring roller
Matrix roller
Seed box

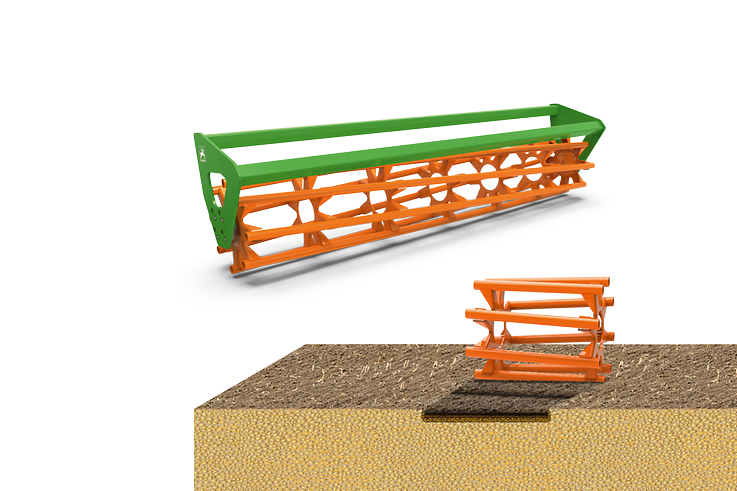

The SW cage roller is a reliable, inexpensive entry-level roller with a particularly low weight and with good crumbling and an open surface structure.
- Reconsolidation with depth control
- Extremely lightweight entry-level roller, especially suitable for smaller tractors

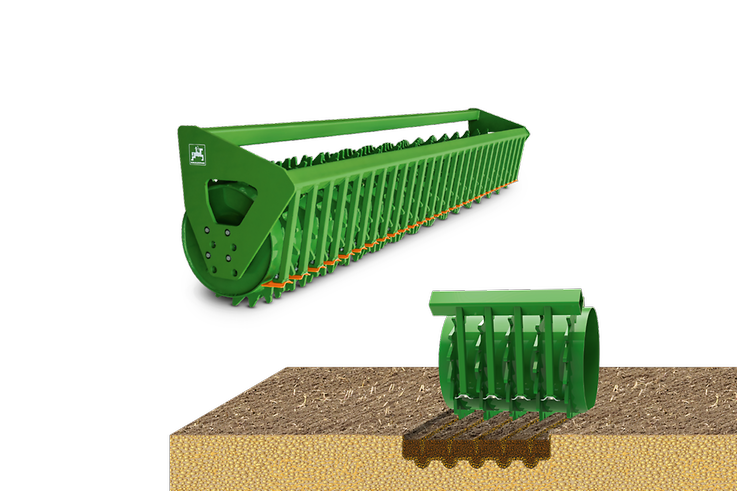

The PW tooth packer roller features a good self-driving effect and, with its leading teeth, it performs a good reconsolidation all across the whole surface. The tooth packer roller is extremely versatile due to these features.
- Complete reconsolidation over the entire soil surface
- Runs blockage-free on sticky soils and where there is a lot of straw

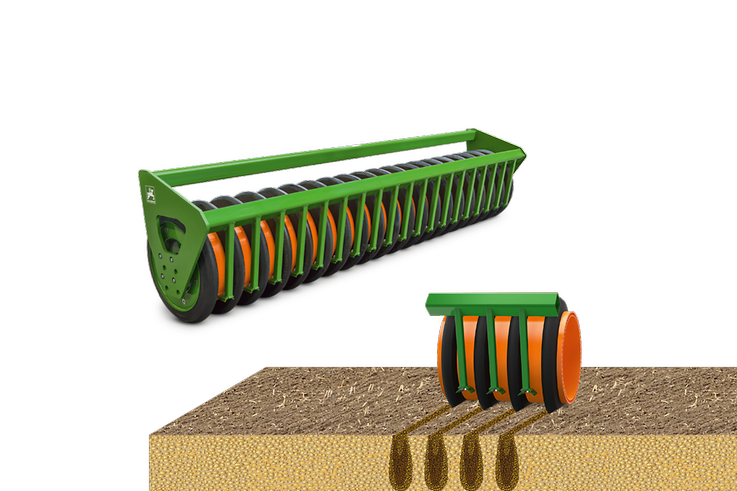

The KW wedge ring roller benefits from a wide range of applications. Its design ensures reconsolidation in strips in almost all soils under any conditions. The sticking of any dirt, capping or blockages is not an issue!
- Universal for all soils and conditions
- Strip-wise reconsolidation

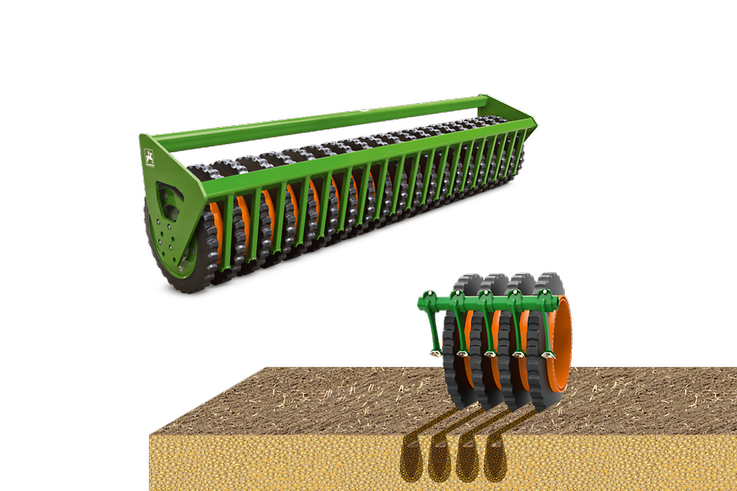

The KWM wedge ring roller, with its Matrix tyre profile offers a particularly good self-driving effect. The roller produces more fine soil for the seedbed due to the Matrix profile.
- Strip-wise reconsolidation
- Matrix tyre profile for improved self-driving effect
- Improved crumbling even under tough conditions

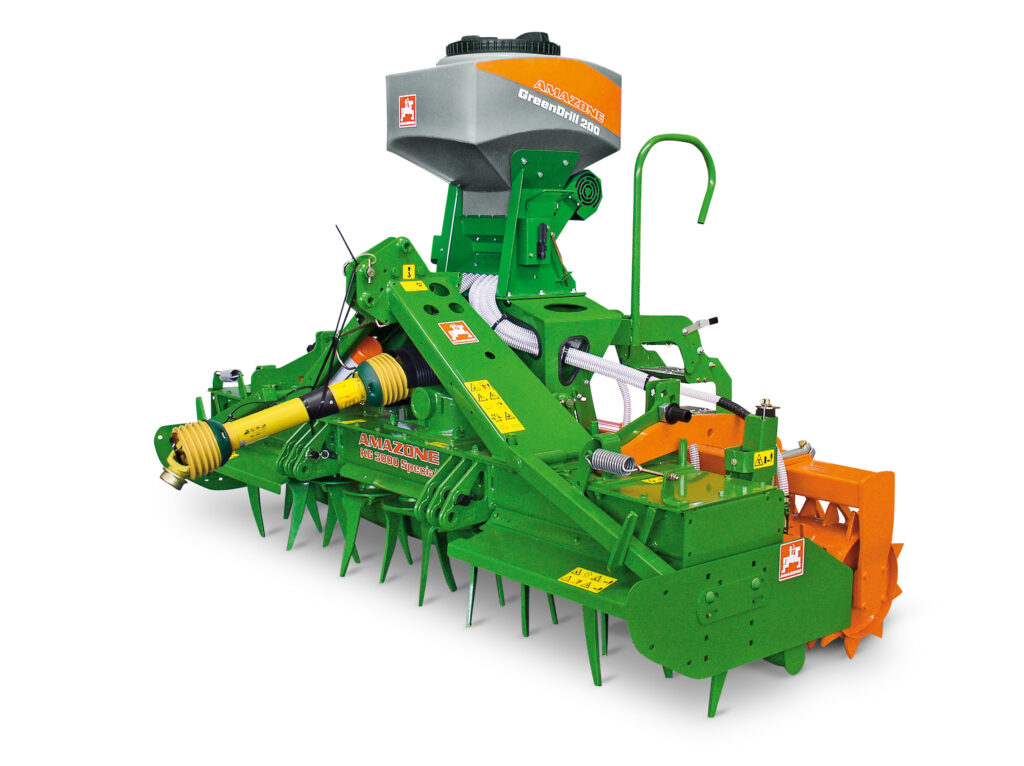

Option to work in combination with AMAZONE GreenDrill, Centaya and Avant Seeding Drills – ranging from 200 L to 2,000 L.
The AMAZONE rear-mounted seeder box is the ideal solution for cultivating and seeding your crops in a single pass.
- Sowing catch crops and fine seeds simultaneously with stubble cultivation or soil tillage
- Various different metering rolls are available
- Wide distribution via baffle plates
- Easily accessible via access steps
- Modern in-cab operating terminal computer in two levels of equipment
Cage roller
The SW cage roller is a reliable, inexpensive entry-level roller with a particularly low weight and with good crumbling and an open surface structure.
- Reconsolidation with depth control
- Extremely lightweight entry-level roller, especially suitable for smaller tractors
Tooth packer roller
The PW tooth packer roller features a good self-driving effect and, with its leading teeth, it performs a good reconsolidation all across the whole surface. The tooth packer roller is extremely versatile due to these features.
- Complete reconsolidation over the entire soil surface
- Runs blockage-free on sticky soils and where there is a lot of straw
Wedge ring roller
The KW wedge ring roller benefits from a wide range of applications. Its design ensures reconsolidation in strips in almost all soils under any conditions. The sticking of any dirt, capping or blockages is not an issue!
- Universal for all soils and conditions
- Strip-wise reconsolidation
Matrix roller
The KWM wedge ring roller, with its Matrix tyre profile offers a particularly good self-driving effect. The roller produces more fine soil for the seedbed due to the Matrix profile.
- Strip-wise reconsolidation
- Matrix tyre profile for improved self-driving effect
- Improved crumbling even under tough conditions
Seed box
Option to work in combination with AMAZONE GreenDrill, Centaya and Avant Seeding Drills – ranging from 200 L to 2,000 L.
The AMAZONE rear-mounted seeder box is the ideal solution for cultivating and seeding your crops in a single pass.
- Sowing catch crops and fine seeds simultaneously with stubble cultivation or soil tillage
- Various different metering rolls are available
- Wide distribution via baffle plates
- Easily accessible via access steps
- Modern in-cab operating terminal computer in two levels of equipment
Specifications
3001 |
3501 |
4002-2 |
5002-2 |
6002-2 |
|
|---|---|---|---|---|---|
| Working width (m) | 3.0 | 3.5 | 4.0 | 5.0 | 6.0 |
| Number of tine carriers | 10 | 12 | 14 | 16 | 20 |
| Rigid or folding | Rigid | Rigid | Folding | Folding | Folding |
