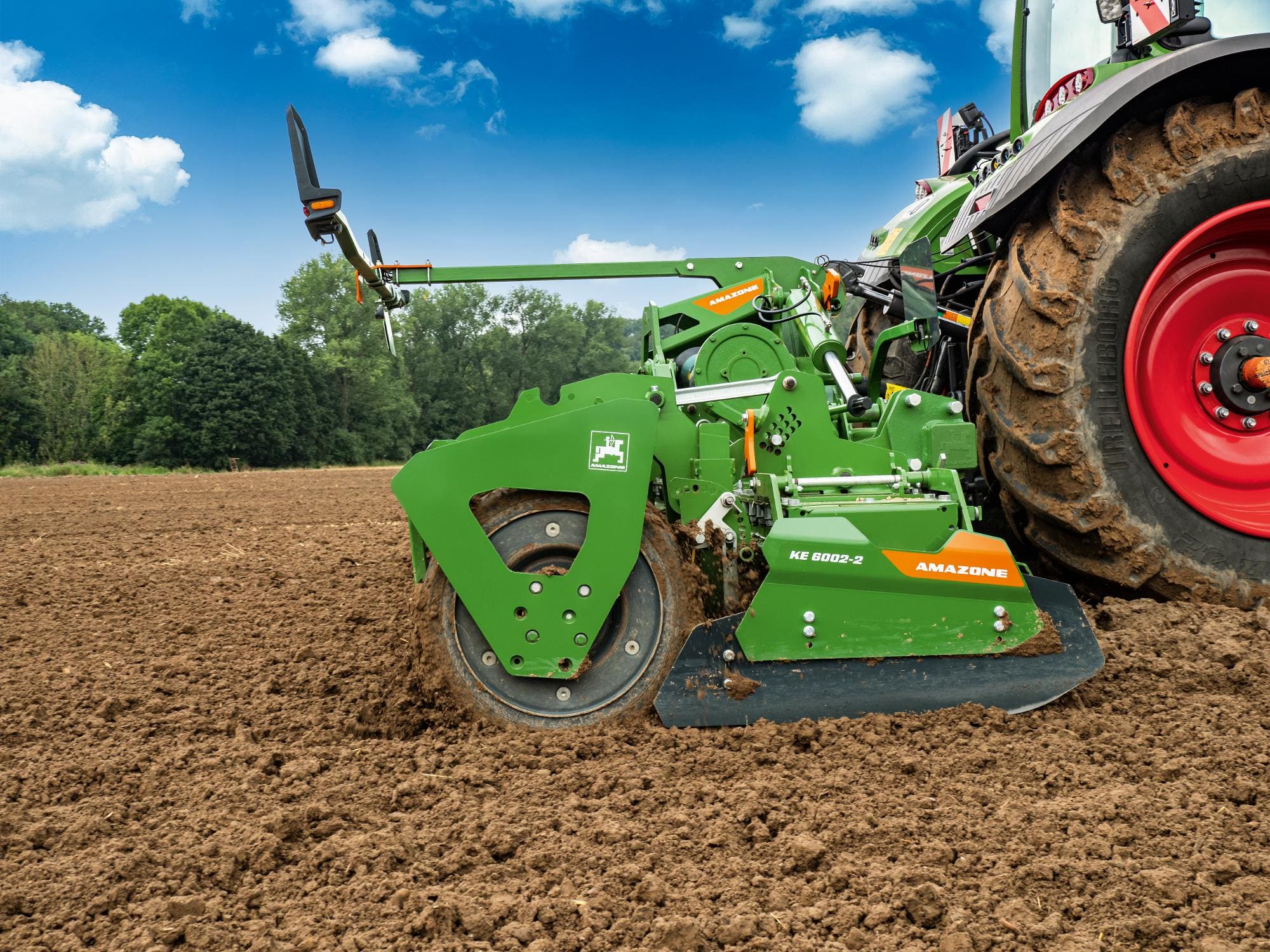

AMAZONE KE 02 Power Harrow
A strong frame, one-piece rotor head and shaft, and a sprung tine fixing make the KE 02 power harrow superbly suited for soil tillage after the plough and mulch sowing on pre-cultivated soils.
Features
Large clearance and strength
The perfect seedbed
High-performance drive
10 rotors on 3 m working width means more room and robust drive components, stronger tines and better material passage. Offset tine arrangement guarantees smooth running, less stress on the machine, and the power and fuel requirement is reduced.
Used in active seedbed preparation, the KE 02 Rotamix power harrow from AMAZONE works with maximum reliability and efficiency in combination with a seed drill or on its own. The wide range of power harrow models, plus a variety of packer rollers, means that the entire soil tillage tool can be perfectly adapted to any location. This is how seedbed preparation works!
At the heart of the new KE 02 is the DirectDrive gearbox, via which the higher power input is transmitted directly to the spur gears driving the power harrow tines. As in the case of the KX and KG power cultivators, there is no power redirection, thereby ensuring excellent low-wear power transmission.

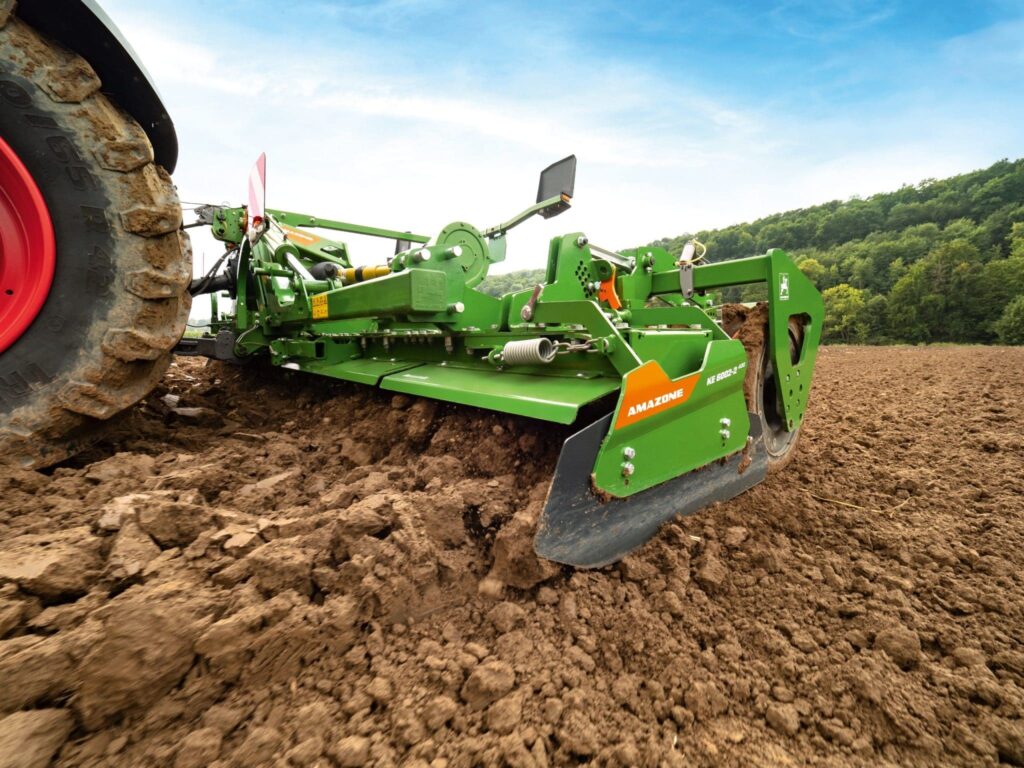

Large clearance and strength
10 rotors on 3 m working width means more room and robust drive components, stronger tines and better material passage. Offset tine arrangement guarantees smooth running, less stress on the machine, and the power and fuel requirement is reduced.
The perfect seedbed
Used in active seedbed preparation, the KE 02 Rotamix power harrow from AMAZONE works with maximum reliability and efficiency in combination with a seed drill or on its own. The wide range of power harrow models, plus a variety of packer rollers, means that the entire soil tillage tool can be perfectly adapted to any location. This is how seedbed preparation works!

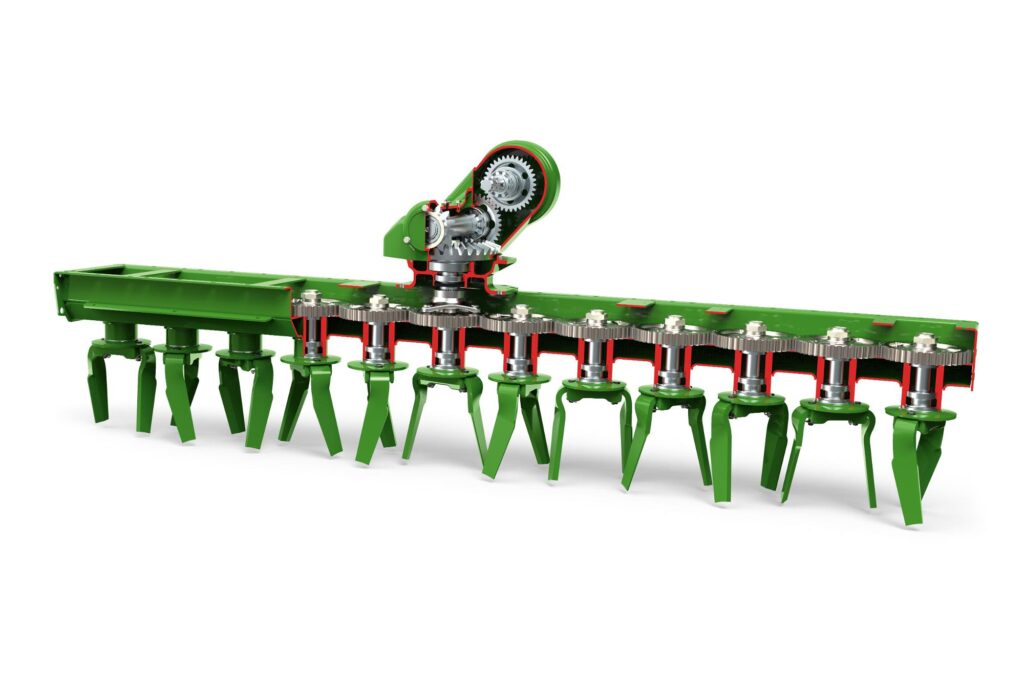

High-performance drive
At the heart of the new KE 02 is the DirectDrive gearbox, via which the higher power input is transmitted directly to the spur gears driving the power harrow tines. As in the case of the KX and KG power cultivators, there is no power redirection, thereby ensuring excellent low-wear power transmission.
Additional options
Cage roller
Tooth packer roller
Wedge ring roller
Matrix roller
Seed box
The SW cage roller is a reliable, inexpensive entry-level roller with a particularly low weight and with good crumbling and an open surface structure.
- Reconsolidation with depth control
- Extremely lightweight entry-level roller, especially suitable for smaller tractors
The PW tooth packer roller features a good self-driving effect and, with its leading teeth, it performs a good reconsolidation all across the whole surface. The tooth packer roller is extremely versatile due to these features.
- Complete reconsolidation over the entire soil surface
- Runs blockage-free on sticky soils and where there is a lot of straw
The KW wedge ring roller benefits from a wide range of applications. Its design ensures reconsolidation in strips in almost all soils under any conditions. The sticking of any dirt, capping or blockages is not an issue!
- Universal for all soils and conditions
- Strip-wise reconsolidation
The KWM wedge ring roller, with its Matrix tyre profile offers a particularly good self-driving effect. The roller produces more fine soil for the seedbed due to the Matrix profile.
- Strip-wise reconsolidation
- Matrix tyre profile for improved self-driving effect
- Improved crumbling even under tough conditions

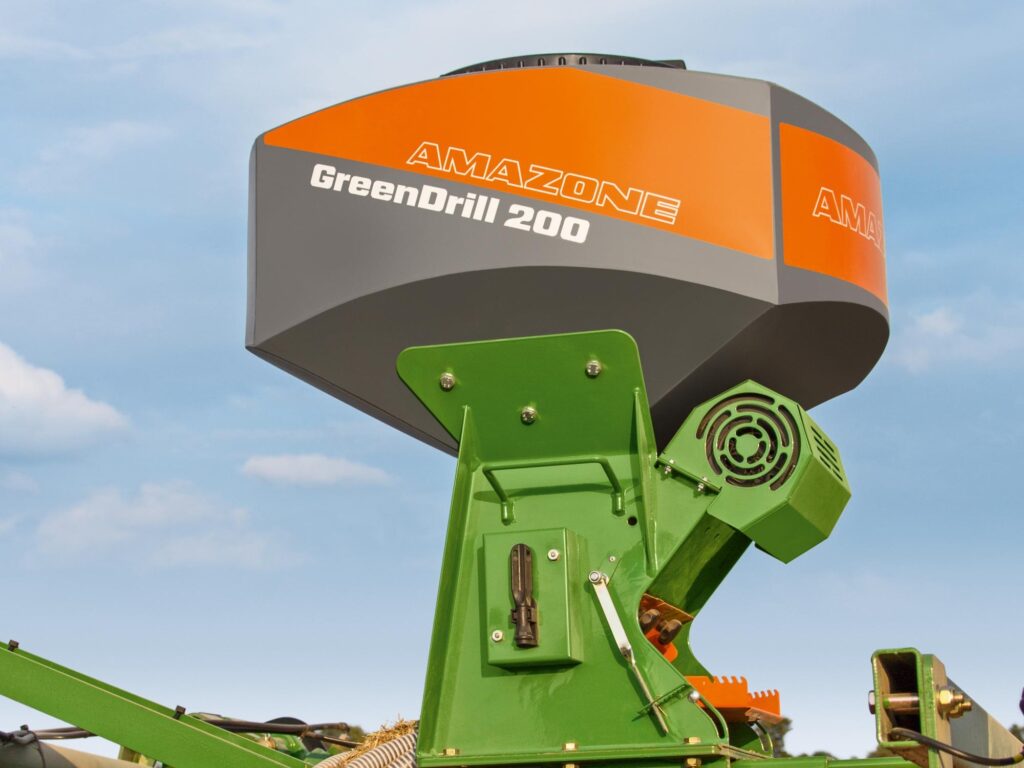

Option to work in combination with AMAZONE GreenDrill, Centaya and Avant Seeding Drills – ranging from 200 L to 2,000 L.
The AMAZONE rear-mounted seeder box is the ideal solution for cultivating and seeding your crops in a single pass.
- Sowing catch crops and fine seeds simultaneously with stubble cultivation or soil tillage
- Various different metering rolls are available
- Wide distribution via baffle plates
- Easily accessible via access steps
- Modern in-cab operating terminal computer in two levels of equipment
Cage roller
The SW cage roller is a reliable, inexpensive entry-level roller with a particularly low weight and with good crumbling and an open surface structure.
- Reconsolidation with depth control
- Extremely lightweight entry-level roller, especially suitable for smaller tractors
Tooth packer roller
The PW tooth packer roller features a good self-driving effect and, with its leading teeth, it performs a good reconsolidation all across the whole surface. The tooth packer roller is extremely versatile due to these features.
- Complete reconsolidation over the entire soil surface
- Runs blockage-free on sticky soils and where there is a lot of straw
Wedge ring roller
The KW wedge ring roller benefits from a wide range of applications. Its design ensures reconsolidation in strips in almost all soils under any conditions. The sticking of any dirt, capping or blockages is not an issue!
- Universal for all soils and conditions
- Strip-wise reconsolidation
Matrix roller
The KWM wedge ring roller, with its Matrix tyre profile offers a particularly good self-driving effect. The roller produces more fine soil for the seedbed due to the Matrix profile.
- Strip-wise reconsolidation
- Matrix tyre profile for improved self-driving effect
- Improved crumbling even under tough conditions
Seed box
Option to work in combination with AMAZONE GreenDrill, Centaya and Avant Seeding Drills – ranging from 200 L to 2,000 L.
The AMAZONE rear-mounted seeder box is the ideal solution for cultivating and seeding your crops in a single pass.
- Sowing catch crops and fine seeds simultaneously with stubble cultivation or soil tillage
- Various different metering rolls are available
- Wide distribution via baffle plates
- Easily accessible via access steps
- Modern in-cab operating terminal computer in two levels of equipment
Specifications
3002 |
3502 |
4002 |
5002 |
6002 |
|
|---|---|---|---|---|---|
| Working width (m) | 3.0 | 3.5 | 4.0 | 5.0 | 6.0 |
| Number of tine carriers | 10 | 12 | 14 | 16 | 20 |
| Max power input (hp) | 150 | 190 | 190 | 300 | 300 |
| Rigid or folding | Rigid | Rigid | Rigid | Folding | Folding |
