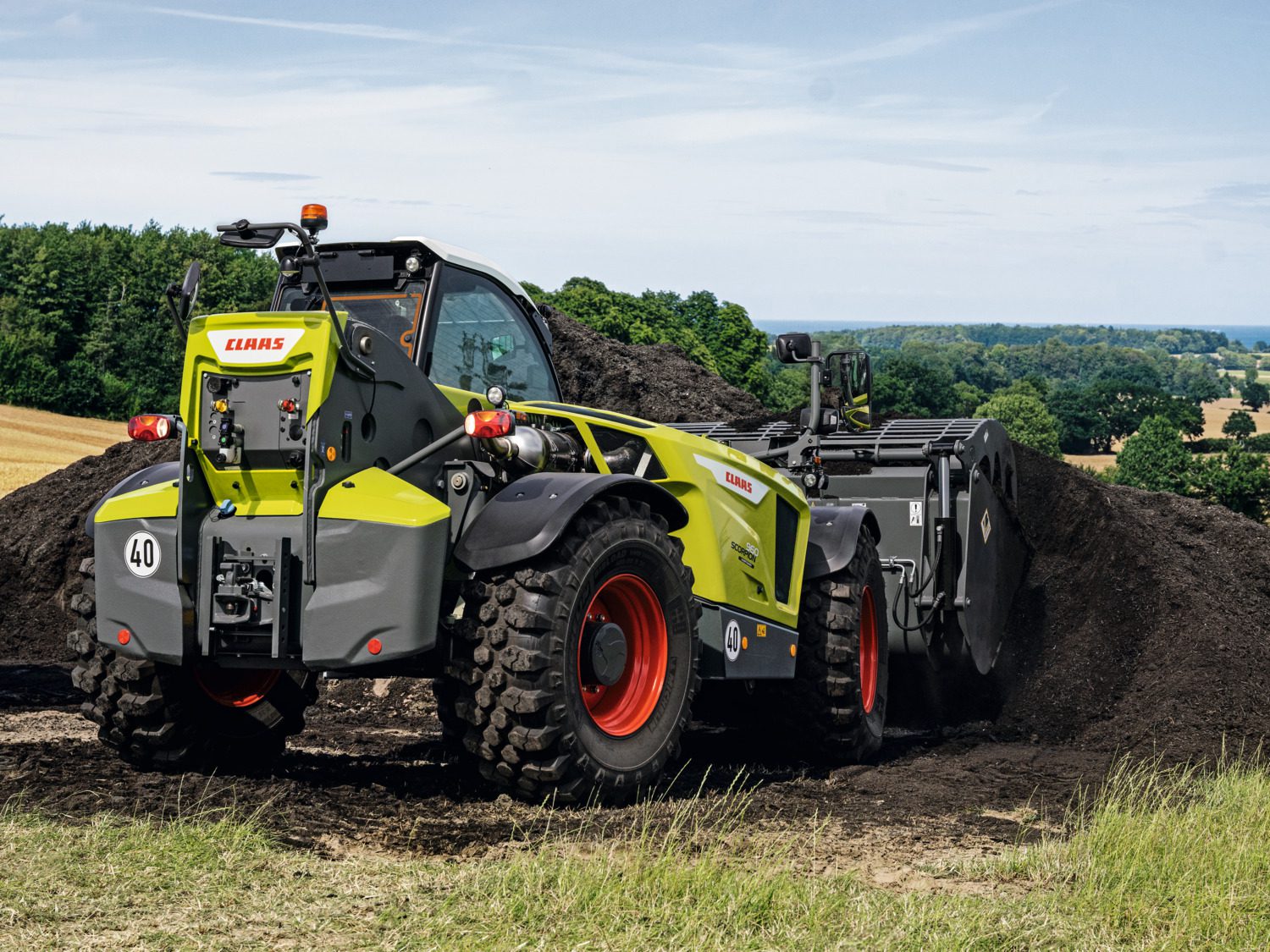

CLAAS SCORPION 733-960 Telehandler

The SCORPION, with a powerful, continuously variable drive train, outstanding agility and many automatic functions, helps you carry out loading operations safely, conveniently and, above all, quickly.

CLAAS SCORPION Large Series

All the way up. The loader unit.

SCORPION operators can rely on very powerful working hydraulics and a robust telescopic arm with side support that delivers outstanding torsion resistance and load capacity.

Safe work at the limit.

All SCORPION models are available with side support for the telescopic arm. This additional support provides for even greater safety when working at an extended reach and with extreme lever forces. This also applies to asymmetrical pushing operations.

More accuracy.

All SCORPION models can optionally be equipped with precision control for the working hydraulics. This ensures that you can stack goods accurately even at great heights and gives you fine control when working with hazardous goods or heavy loads

Engine and drive train.

The high-torque 4-cylinder engines featuring 4-valve technology and turbocharger have plenty of power in reserve, even for the toughest pushing and material handling tasks. Intelligent engine and ground drive control ensures that the engines always run in the optimum speed and torque range, depending on the engine load during road travel. Your advantage: significantly lower fuel consumption and reduced noise levels.

Specifications – Small Series

	732 – runout model	733	741 – runout model	742	1033
Lifting capacity (kg)	3200	3300	4100	4200	3300
Lifting height (m)	6.93	6.93	6.93	6.93	9.75
Horsepower	143	143	143	143	143
Load sensing pump max capacity (L)	160	160	160	160	160
Hydrostatic traction drive	VARIPOWER 2	VARIPOWER 2	VARIPOWER 2	VARIPOWER 3	VARIPOWER 2
Max top speed (km/h)	40	40	40	40	40

Swipe to see more

Specifications – Large Series

	746	848	756	960
Lifting capacity (kg)	4600	4800	5600	6000
Lifting height (m)	7.03	8.01	7.03	8.79
Horsepower	143	156	156	156
Load sensing pump max capacity (L)	187	187	187	187
Hydrostatic traction drive	VARIPOWER 2	VARIPOWER PLUS	VARIPOWER PLUS	VARIPOWER PLUS
Max top speed (km/h)	40	40	40	40
